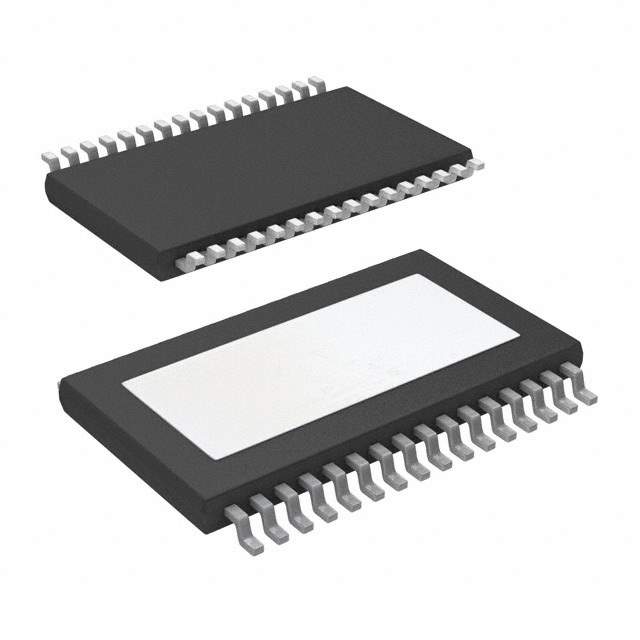

Product Overview: TPS92520QDADRQ1 from Texas Instruments

The TPS92520QDADRQ1 is a highly integrated, automotive-grade LED driver designed to meet the demanding requirements of automotive lighting systems. Manufactured by Texas Instruments, a leader in semiconductor solutions, this dual-channel, synchronous, buck LED driver is engineered to provide a reliable and efficient power solution for automotive exterior and interior lighting applications.

With its wide input voltage range of 4.5 V to 65 V, the TPS92520QDADRQ1 can withstand the fluctuations commonly found in automotive power systems, ensuring consistent performance across various operating conditions. The device supports up to 2.1 A of output current per channel, making it capable of driving high-power LEDs with precision and stability.

The TPS92520QDADRQ1's innovative design includes a variety of features that enhance its functionality and ease of use. It offers programmable switching frequency, integrated MOSFETs, and a dedicated PWM dimming input, which allows for fine-grained control over the brightness levels of the LEDs. The device also incorporates protection features such as overvoltage, overcurrent, and thermal shutdown to safeguard the system against potential damage.

This LED driver is designed to be flexible and adaptable, supporting both analog and PWM dimming methods. It provides excellent dimming performance with high dimming ratios, ensuring smooth and flicker-free operation. Additionally, the TPS92520QDADRQ1 is AEC-Q100 qualified, which is a testament to its robustness and suitability for the harsh environments encountered in automotive applications.

For designers and engineers looking to create efficient, reliable, and high-performing lighting solutions for vehicles, the TPS92520QDADRQ1 offers an optimal balance of features, performance, and protection. Its compact, power-dense package and comprehensive feature set make it an excellent choice for a wide range of automotive lighting applications, from headlights and tail lights to interior illumination and signal lighting.

In summary, the TPS92520QDADRQ1 is a testament to Texas Instruments' commitment to providing advanced, high-quality components for the automotive industry, helping to drive innovation and enhance the safety and aesthetics of modern vehicles.
