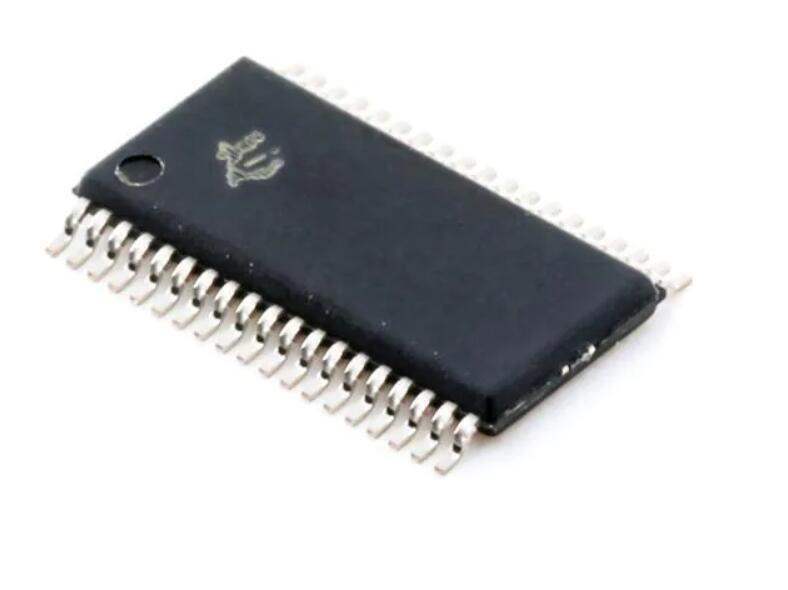

Product Overview: TPS929240QDCPRQ1 from Texas Instruments

The TPS929240QDCPRQ1 is a state-of-the-art automotive lighting driver from Texas Instruments, designed to meet the rigorous demands of modern vehicle lighting systems. This advanced product is specifically engineered to provide a high degree of flexibility and efficiency, making it an ideal solution for automotive exterior and interior lighting applications.

Key Features

• Integrated MOSFET: The TPS929240QDCPRQ1 comes with an integrated high-side NMOS FET that allows for direct control of the lighting load, reducing external component count and simplifying the design process.
• LED String Protection: With its robust LED open-circuit, short-circuit, and over-temperature protection, the device ensures the reliability and longevity of the lighting system under various conditions.
• Flexible PWM Dimming: It offers a wide range of pulse-width modulation (PWM) dimming capabilities, enabling precise brightness control for different lighting scenarios.
• Serial Interface Control: The inclusion of a serial peripheral interface (SPI) allows for seamless communication and control, providing a way to adjust settings and monitor the status of the lighting system.
• Thermal Management: With integrated thermal shutdown protection, the TPS929240QDCPRQ1 prevents damage from overheating, ensuring the device operates within safe temperature ranges.

Applications

The versatility of the TPS929240QDCPRQ1 makes it suitable for a wide array of automotive lighting applications, including:

• Headlights
• Tail lights
• Indicator lights
• Daytime running lights (DRLs)
• Interior ambient lighting

Quality and Reliability

As a product designed for the automotive industry, the TPS929240QDCPRQ1 meets the stringent quality standards required for vehicle components. It is AEC-Q100 qualified, ensuring performance and reliability in the harsh environments that automotive electronics are often exposed to.

In summary, the TPS929240QDCPRQ1 from Texas Instruments is a robust and versatile lighting driver that offers advanced features for automotive lighting systems. Its integration capabilities, protection features, and flexible control options make it a top choice for manufacturers looking to enhance the safety, style, and functionality of their vehicles' lighting.
