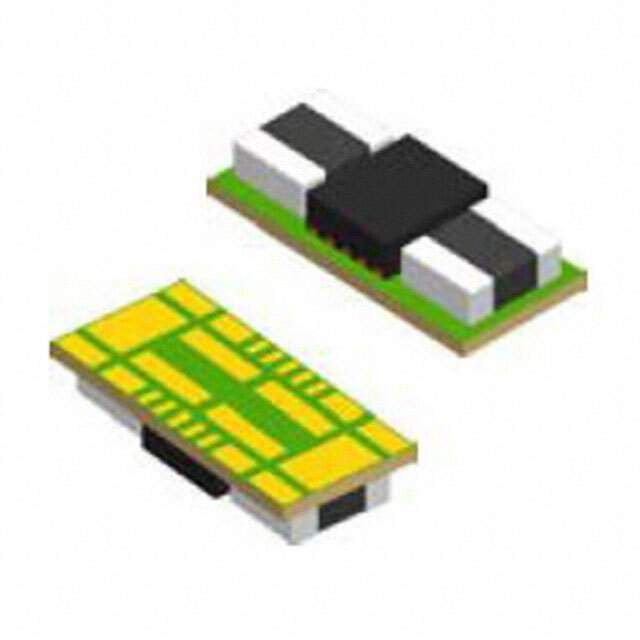

TPSM82480MOPR

Part No TPSM82480MOPR
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-5.5V / Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 6A 2.4V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Texas Instruments
Series TPSM
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.4V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.6 ~ 5.5V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features OCP, OTP, SCP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 24-SMD Module
Dimension 0.31" L x 0.14" W x 0.06" H (7.9mm x 3.6mm x 1.6mm)
Supplier Device Package 24-QFM (7.9x3.6)
Base Product Number TPSM82480
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 296-49473-1,296-49473-2,296-49473-6
Standard Package 3,000
Win Source Part Number 1141209-TPSM82480MOPR
Ultra Librarian 3D Model Ultra Librarian TPSM82480MOPR CAD Model

Description

The TPSM82480MOPR is a highly efficient, compact, integrated power solution from Texas Instruments that is designed to simplify the power supply design for a wide range of applications. This power module integrates two low-resistance MOSFETs, a shielded inductor, and passives into a small, low-profile package. Its advanced design enables it to deliver up to 6A of output current with excellent power conversion efficiency.

Key Features

  • Wide Input Voltage Range: The TPSM82480MOPR operates from a 2.4V to 5.5V input voltage range, making it suitable for various applications, including those powered by Li-Ion batteries or 5V input rails.
  • Adjustable Output Voltage: Users can adjust the output voltage from 0.6V to 5.5V, allowing for a high degree of flexibility to power different ICs or systems.
  • High Efficiency: The module features high-efficiency power conversion, which can reach up to 95%, reducing heat generation and improving system reliability.
  • Compact Footprint: With a small 3.0mm x 3.8mm HotRod™ QFN package, the TPSM82480MOPR saves valuable board space and is ideal for space-constrained applications.
  • Integrated Inductor: The inclusion of an integrated inductor simplifies the design process, reduces external component count, and helps to minimize electromagnetic interference (EMI).

Applications

The TPSM82480MOPR is suitable for a variety of applications including, but not limited to:

  • Point-of-Load (POL) conversions
  • Network routers and switches
  • Enterprise servers and storage systems
  • Field Programmable Gate Arrays (FPGAs)
  • Test and measurement equipment

Performance and Protection

This module is not only powerful but also safe, featuring over-temperature protection, output over-voltage protection, and under-voltage lockout. These protective features ensure the TPSM82480MOPR operates within safe parameters, safeguarding both the power module and the system it powers.

For designers looking for a power solution that combines efficiency, versatility, and ease of use, the TPSM82480MOPR by Texas Instruments is an excellent choice that meets a broad spectrum of power supply requirements.
