Introducing the TPSM84A21MOJR from Texas Instruments

The TPSM84A21MOJR is a state-of-the-art power module designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This innovative module is part of TI's extensive portfolio of power management integrated circuits, and it is specifically engineered to cater to the needs of modern electronic systems requiring efficient and reliable power delivery.

Key Features

• Integrated Power Solution: The TPSM84A21MOJR combines a DC-DC converter, inductor, and passives into a single package. This integration simplifies the design process, reduces external component count, and minimizes the footprint on the PCB.
• Wide Input Voltage Range: With an input voltage range of 4.5V to 17V, the module is versatile and can accommodate various power sources, making it suitable for a wide array of applications.
• High-Efficiency Operation: This power module is designed for high-efficiency operation, which helps reduce power loss and improves the overall thermal performance of the system.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 10V, providing the flexibility to power different ICs and peripherals with varying voltage requirements.

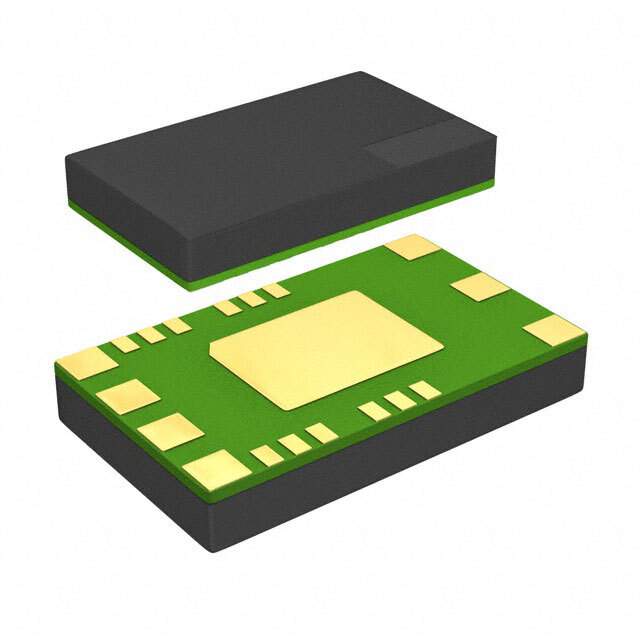

• Compact Footprint: The TPSM84A21MOJR comes in a compact, low-profile QFN package that is ideal for space-constrained applications.

Applications

The TPSM84A21MOJR is suitable for a multitude of applications, including but not limited to:

• Telecommunications equipment
• Networking servers and storage systems
• Industrial controls
• Test and measurement equipment
• Enterprise computing

Technical Specifications

With a maximum output current of 10A and a power output up to 100W, the TPSM84A21MOJR is capable of powering high-performance processors and FPGAs. The module's advanced thermal management features ensure reliable operation even under full load conditions. Additionally, it supports a variety of protection features, such as over-current, over-temperature, and under-voltage lockout, providing a high level of safety for sensitive electronic components.

For designers looking for a high-performance, easy-to-use power solution, the TPSM84A21MOJR from Texas Instruments offers a compelling combination of power density, flexibility, and reliability.
