Introducing the TS3A4751RUCR from Texas Instruments

The TS3A4751RUCR is a cutting-edge, low-voltage single-pole quad-throw (SP4T) analog switch that is part of Texas Instruments' extensive portfolio of switch and multiplexer devices. This product is designed to provide high-performance signal switching for a wide range of applications, including mobile phones, PDAs, digital cameras, and other portable electronic devices.

With a single supply operation ranging from 1.65V to 3.6V, the TS3A4751RUCR is optimized for low-voltage applications. This feature ensures compatibility with modern low-power devices and contributes to overall power efficiency. The low on-state resistance of the switch (typically 0.8 ohms at 2.7V) minimizes signal distortion and allows for the transmission of high-quality analog signals.

The TS3A4751RUCR boasts a high off-isolation of -75dB at 1MHz and crosstalk of -85dB at 1MHz, ensuring minimal signal interference and leakage between channels. This is essential for maintaining signal integrity in applications where multiple signal paths are switched, such as audio or video signal routing.

Another significant feature of this device is its break-before-make switching action, which prevents momentary shorting when switching between channels. This characteristic is particularly important in preventing damage to other components in the signal path and avoiding signal corruption.

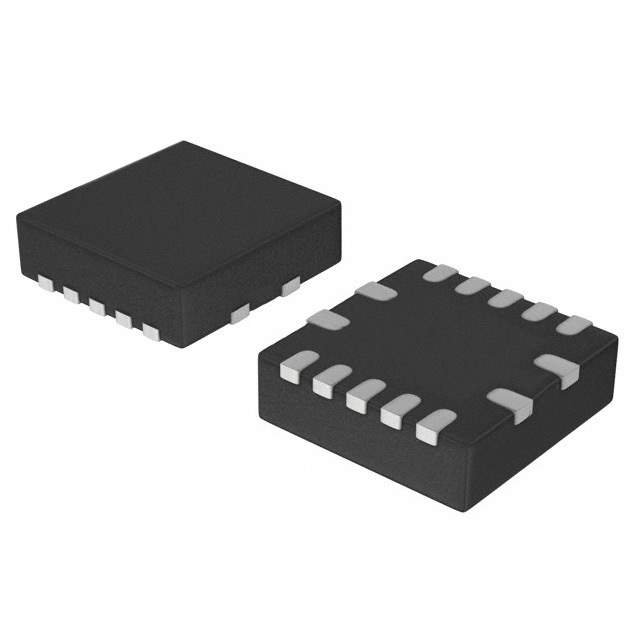

The TS3A4751RUCR comes in a compact 16-pin QFN package, making it suitable for space-constrained applications. The device also supports a wide operating temperature range of -40°C to +85°C, allowing it to function reliably in various environmental conditions.

For ease of use, the TS3A4751RUCR is fully specified for partial-power-down applications using I_off support. This feature enables the swift transition to a low-power state when the device is not in use, further conserving energy and extending battery life in portable applications.

In summary, the TS3A4751RUCR from Texas Instruments is an exceptional choice for designers looking for a reliable, high-performance SP4T analog switch that conserves power, minimizes signal distortion, and operates effectively in a broad range of temperatures and applications.
