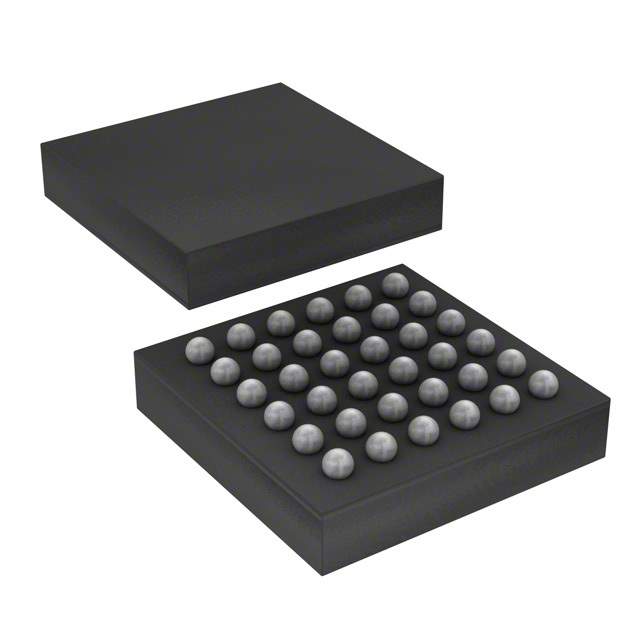

Product Overview: TUSB1211A1ZRQR from Texas Instruments

The TUSB1211A1ZRQR is a highly integrated Universal Serial Bus (USB) 2.0 transceiver chip manufactured by Texas Instruments (TI). It is designed to cater to the needs of both mobile and non-mobile applications, providing a versatile and power-efficient solution for USB connectivity. This transceiver supports High-Speed (HS), Full-Speed (FS), and Low-Speed (LS) operation, ensuring compatibility with a wide range of USB devices.

Key Features:

• USB 2.0 Compliance: The TUSB1211A1ZRQR complies with the USB 2.0 standard, providing up to 480 Mbps of data transfer rate in High-Speed mode.
• OTG Capabilities: It supports USB On-The-Go (OTG) Supplement 2.0, which allows USB devices to perform both host and peripheral roles whenever suitable.
• Flexible Power Management: The device features multiple power management modes, including an ultra-low power state, to accommodate the power-sensitive requirements of battery-powered applications.
• Integrated Resistors: Built-in termination resistors for HS and FS operations simplify the design and reduce external component count.
• Versatile Interface: The TUSB1211A1ZRQR includes a ULPI interface for flexible connection to a USB controller, offering a 12-pin connection that reduces pin count requirements for the system processor.
• Robust ESD Protection: Enhanced ESD protection is integrated into the chip to safeguard against electrostatic discharges, ensuring greater reliability and longevity of the product.

Applications:

The TUSB1211A1ZRQR is ideal for a variety of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Digital Cameras and Camcorders
• GPS Devices
• Industrial Instruments
• Medical Devices

Quality and Reliability:

Texas Instruments is renowned for its commitment to quality and reliability, and the TUSB1211A1ZRQR is no exception. It undergoes rigorous testing and quality assurance processes to meet the high standards expected by designers and consumers alike.

In summary, the TUSB1211A1ZRQR from Texas Instruments is a versatile and reliable USB 2.0 transceiver that is well-suited for a wide range of USB-enabled devices, providing a high level of integration, power efficiency, and performance.
