TCAN1042HDRBRQ1 - High-Speed CAN Transceiver

The TCAN1042HDRBRQ1 from Texas Instruments is a robust high-speed Controller Area Network (CAN) transceiver designed to serve automotive applications and to withstand the harsh conditions of the automotive environment. This device is a member of Texas Instruments' high-quality automotive product line, designed to interface between a CAN protocol controller and the physical two-wire CAN bus.

The TCAN1042HDRBRQ1 transceiver is designed with the state-of-the-art technology to ensure reliable communication with significant fault tolerance, making it an ideal choice for automotive networks. It operates over a wide temperature range and is AEC-Q100 qualified, which is a critical standard for automotive components, ensuring that they can endure the operational stress and temperature variations found in automotive applications.

This transceiver offers various features that make it an exceptional component for safety-critical communication in vehicles. It supports the ISO 11898-2 high-speed CAN physical layer standard and is capable of transmitting and receiving at speeds of up to 1 Mbps. The device also includes features such as:

• Bus Fault Protection: The TCAN1042HDRBRQ1 can tolerate up to ±58V bus fault conditions, providing excellent protection against transients and faults on the CAN bus.
• Thermal Protection: Integrated thermal shutdown protects the device from damage due to excessive power dissipation.
• Low Power Mode: A low-power standby mode helps to reduce power consumption when the network is idle, with a remote wake-up feature via the CAN bus.
• Robust Electrostatic Discharge (ESD) Protection: The transceiver includes ESD protection features, guarding the CAN bus pins against electrostatic discharges.

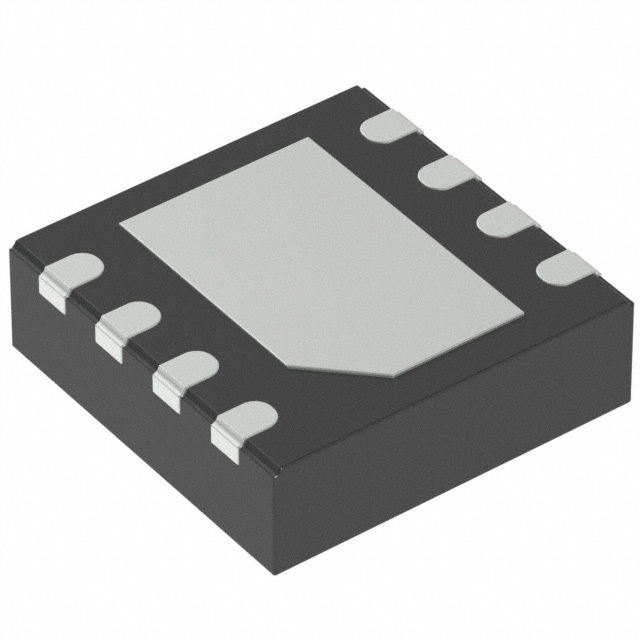

With its 8-pin HSON package, the TCAN1042HDRBRQ1 is compact and suitable for space-constrained applications. It is also characterized for operation across a wide temperature range of -40°C to +125°C, making it reliable in various operating conditions.

In summary, the TCAN1042HDRBRQ1 is a high-performance, automotive-grade CAN transceiver from Texas Instruments that offers robust protection features, low power operation, and high-speed communication capabilities, making it a top choice for automotive network systems where reliability and efficiency are paramount.
