Product Overview: TUSB2046BVFR by Texas Instruments

The TUSB2046BVFR is a versatile and high-performance USB hub controller chip from Texas Instruments (TI), designed to enhance connectivity options for various electronic devices. This integrated circuit is part of TI's extensive range of USB interface products, known for their reliability and compliance with industry standards.

Key Features

• USB Interface: The TUSB2046BVFR complies with the Universal Serial Bus (USB) 2.0 specification, ensuring compatibility with a wide range of USB devices. It is capable of operating at full-speed (12 Mbps) and is backward compatible with low-speed (1.5 Mbps) USB devices.
• Port Configuration: This hub controller features four downstream ports, enabling the connection of multiple devices to a single USB port on a host computer or another USB hub. It simplifies the expansion of USB connectivity and is ideal for applications requiring additional USB ports.
• Power Management: The device supports both bus-powered and self-powered modes, providing flexibility in different usage scenarios. It includes over-current protection mechanisms for each port, ensuring the safety of connected devices.
• Oscillator Support: An integrated 6 MHz oscillator input circuit reduces external component requirements, simplifying the design and reducing the overall bill of materials.

Applications

The TUSB2046BVFR is suitable for a wide range of applications, including but not limited to:

• PC and Mac peripherals
• Portable docking stations
• Monitors and keyboards with integrated hubs
• USB port expansion for desktop and laptop computers

Technical Specifications

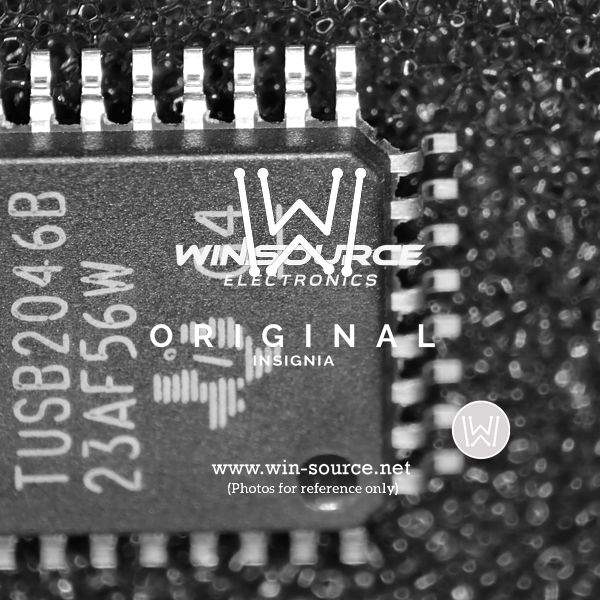

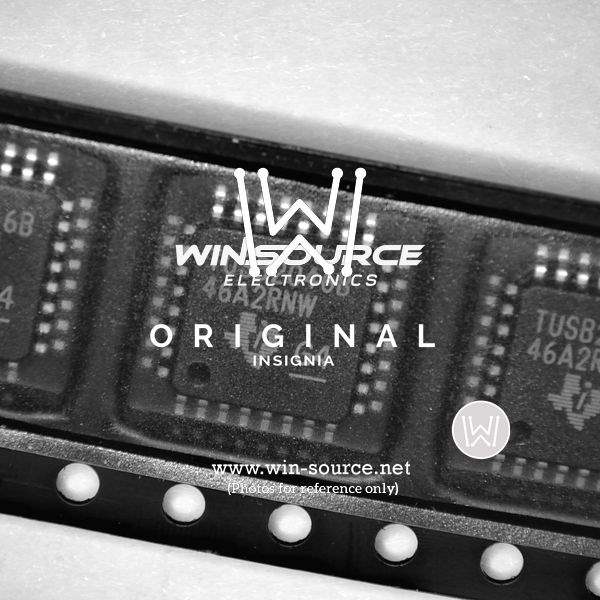

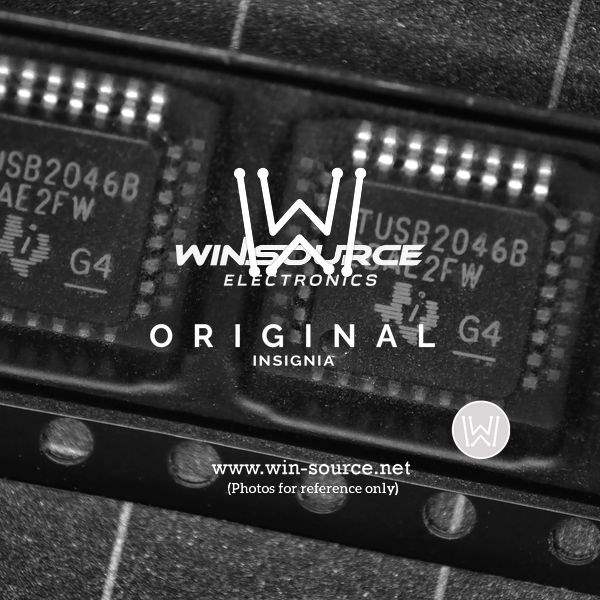

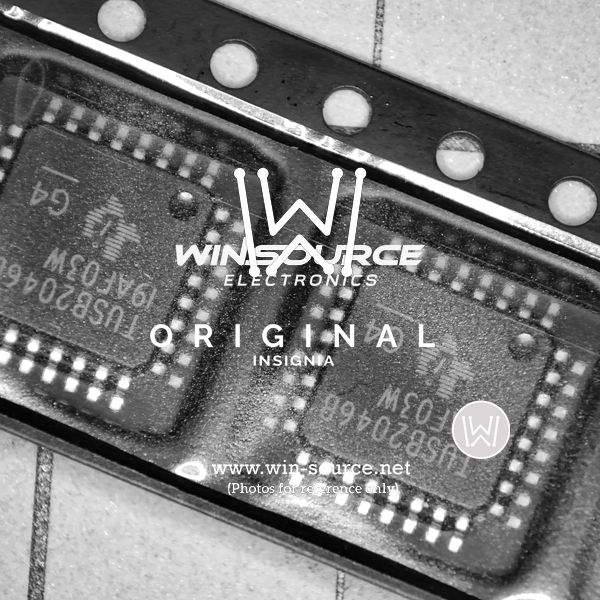

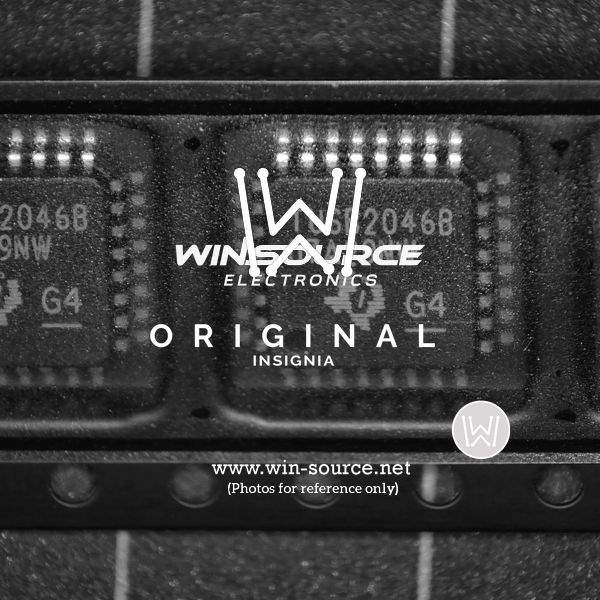

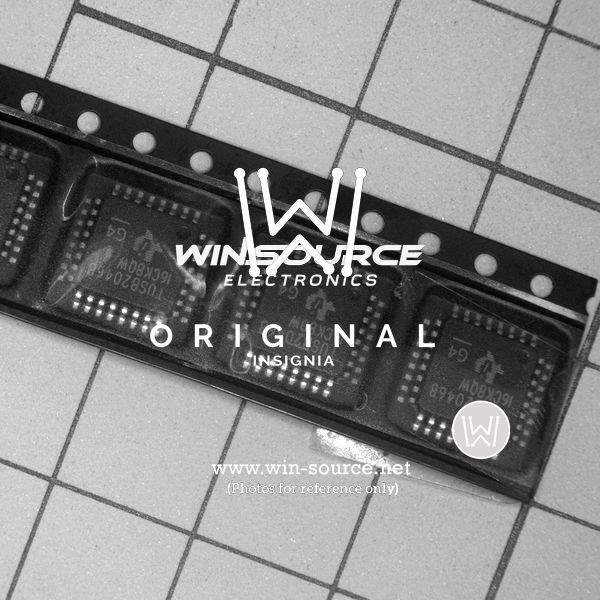

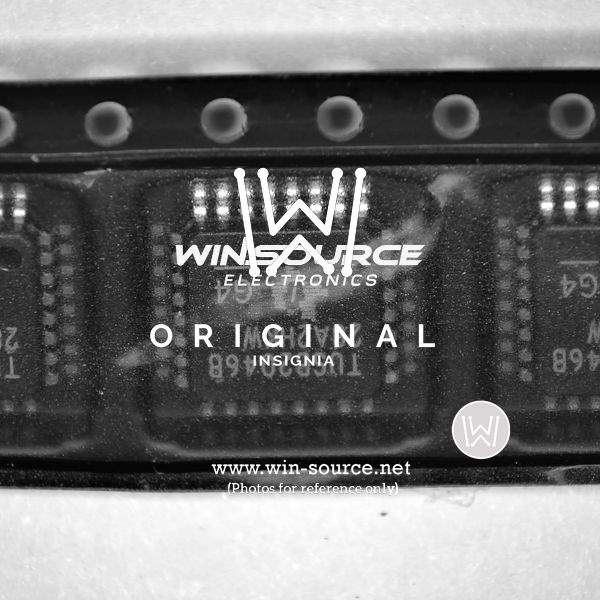

The device is housed in a compact 32-pin LQFP (Low Profile Quad Flat Package) and operates over an industrial temperature range of -40°C to 85°C. It requires a single 3.3V power supply for operation, with 5V tolerant I/Os, making it suitable for interfacing with a variety of logic levels.

For developers and manufacturers looking for a robust USB hub solution, the TUSB2046BVFR offers an excellent blend of performance, power efficiency, and ease of integration, backed by Texas Instruments' reputation for quality and support.
