The TUSB217ARWBRQ1 from Texas Instruments is a specialized integrated circuit designed to enhance USB 2.0 signal quality by implementing advanced signal conditioning techniques. This high-speed USB 2.0 signal conditioner is particularly suited for automotive applications, where reliability and performance under harsh conditions are paramount.

Key Features

• Signal Conditioning: The device offers adaptive equalization and de-emphasis, optimizing signal integrity for various cable lengths, thereby extending the reach of USB 2.0 signals.
• Compliance: It is compliant with the USB 2.0 specification and supports High-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) data rates.
• Automotive Grade: As part of TI's "Q1" series, the TUSB217ARWBRQ1 is designed for automotive applications and meets the rigorous AEC-Q100 Grade 2 standard, ensuring operation over a temperature range of -40°C to +105°C.
• Flexible Power Supply: The device can operate with a 3.3V supply voltage, catering to common automotive power systems.
• ESD Protection: Built-in IEC 61000-4-2 ESD protection safeguards the USB data lines, which is critical in the automotive environment.

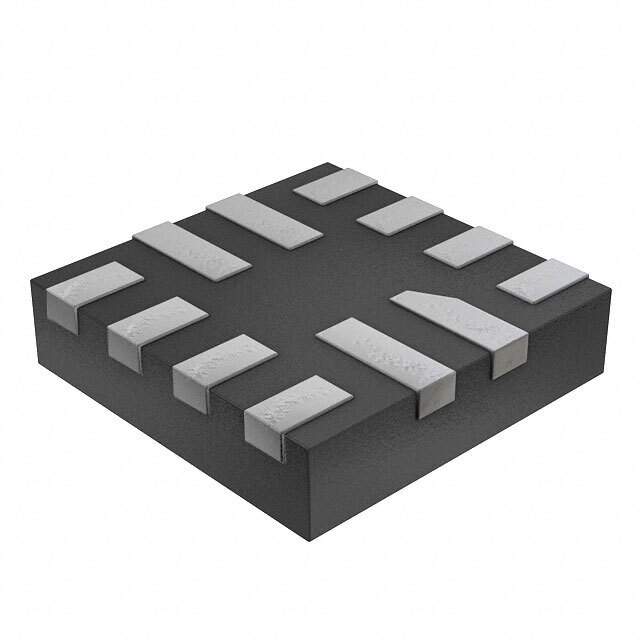

• Small Package: The TUSB217ARWBRQ1 comes in a compact 12-pin WQFN package, minimizing board space and facilitating design integration.

Applications

The device is ideal for a range of automotive applications where USB connectivity is required, including infotainment systems, navigation units, and rear-seat entertainment modules. It ensures robust data communication in vehicles by mitigating the effects of long cable runs and electromagnetic interference (EMI) commonly found in automotive environments.

Design Support

Texas Instruments provides extensive design support for the TUSB217ARWBRQ1, including technical documentation, reference designs, and simulation tools to assist engineers in integrating the device into their projects efficiently and effectively. This support helps to reduce development time and ensures a smooth implementation process for automotive USB systems.
