Analog Devices Inc. LTC4311ISC6 I2C Active Terminator

The LTC4311ISC6 is a high-performance I2C active terminator from Analog Devices Inc., designed to enhance data communication in I2C systems. This innovative device extends the capabilities of standard I2C bus systems by allowing more devices or longer trace lengths to be used while maintaining data integrity. It is an ideal solution for complex systems that require robust communication over the I2C bus.

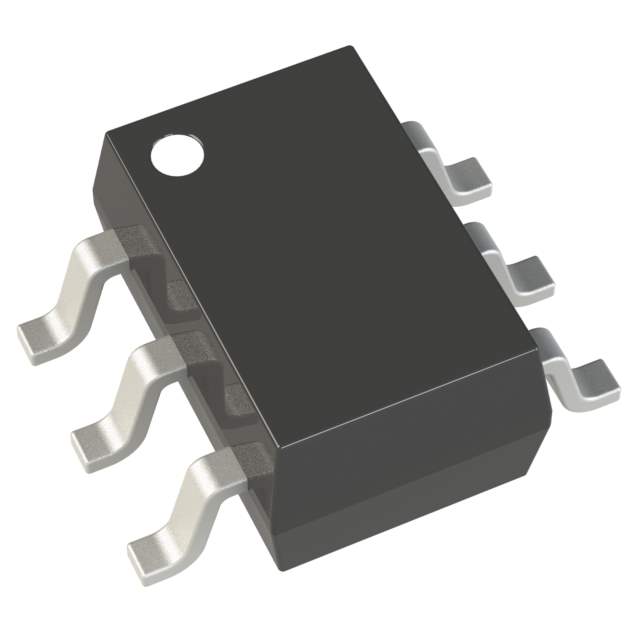

Encased in a compact SC-70 package, the LTC4311ISC6 is engineered to actively buffer the I2C bus lines, allowing for an increase in the total capacitance on the bus, which can be up to 4000pF. This is particularly useful when there is a need to drive large capacitive loads or to operate in environments with high capacitance due to long cables or a large number of I2C devices.

The device supports both standard (up to 100kHz) and fast (up to 400kHz) I2C modes, making it versatile for various applications. It also features a strong pull-up current source that activates automatically when the bus is idle or during the rising edge of the SCL or SDA lines, thereby improving the rise time and ensuring a sharp, clean signal for reliable data transmission.

One of the key benefits of the LTC4311ISC6 is its ease of use. It requires no additional software configuration or programming, making it a plug-and-play solution that can be easily integrated into existing I2C bus systems. Its low quiescent current makes it energy-efficient, while the built-in fault protection features, such as over-temperature shutdown and under-voltage lockout, ensure safe operation under various conditions.

Overall, the LTC4311ISC6 from Analog Devices Inc. is a powerful solution for enhancing I2C bus performance. Its ability to drive higher capacitance loads and improve signal rise times makes it essential for engineers looking to optimize their I2C bus systems for speed, reliability, and scalability.

For more detailed specifications and application information, designers are encouraged to refer to the LTC4311ISC6 datasheet and Analog Devices Inc.'s technical resources.
