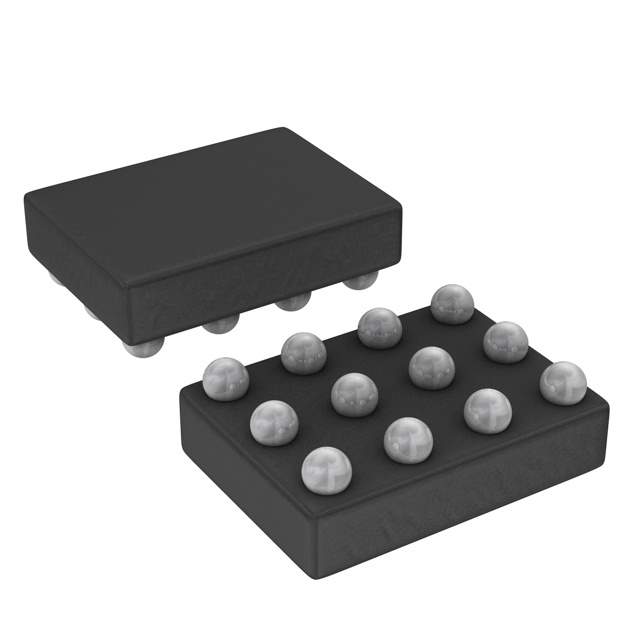

Product Overview: TXB0104YZTR from Texas Instruments

The TXB0104YZTR is a highly versatile, 4-bit bidirectional voltage-level translator from the renowned semiconductor manufacturer Texas Instruments. This advanced component is designed to provide seamless voltage level translation between different logic levels, ranging from 1.2V to 3.6V on the A side (VCCA) and 1.65V to 5.5V on the B side (VCCB), making it an ideal solution for multi-voltage system applications. The TXB0104YZTR is housed in a compact YZT package, which is optimized for space-constrained applications.

Key Features:

• Auto-Direction Sensing: The TXB0104YZTR does not require a direction control signal, as it can automatically sense the direction of data flow. This feature simplifies the design and reduces the need for additional control lines.
• Low Power Consumption: With its low power consumption, the device is suitable for battery-powered and power-sensitive applications, ensuring efficient operation without compromising performance.
• High-Speed Operation: The device supports high-speed signal propagation with minimal propagation delay, making it suitable for high-speed interfaces.
• Robust ESD Protection: The TXB0104YZTR is equipped with robust ESD protection circuitry, which safeguards the device against electrostatic discharges, enhancing its durability and reliability in harsh environments.
• Wide Operating Temperature Range: It operates across a broad temperature range, ensuring reliability and performance even under varying environmental conditions.

Applications:

The TXB0104YZTR is highly suited for a range of applications that require voltage level translation, such as:

• Interfacing between microcontrollers and peripherals with different voltage levels
• Signal level translation for data buses in multi-voltage systems
• Mobile devices, portable electronics, and consumer electronics
• Industrial controls and automation systems

As a product from Texas Instruments, a leader in semiconductor solutions, the TXB0104YZTR is backed by rigorous testing and quality assurance processes. It is an excellent choice for designers and engineers looking for a reliable and efficient voltage-level translation solution.
