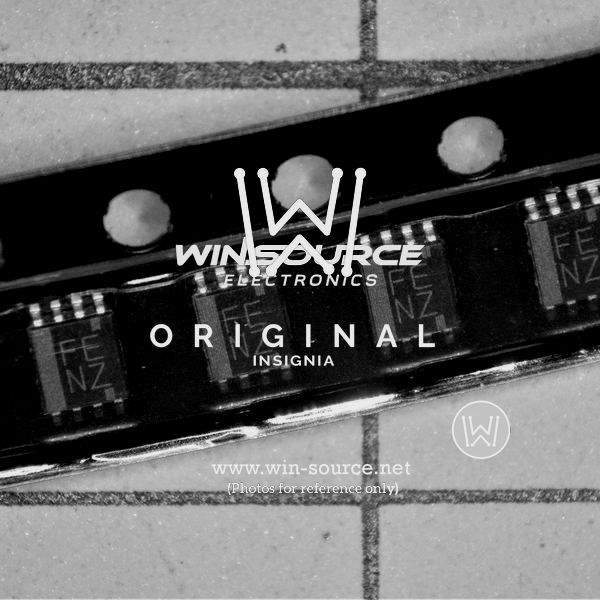

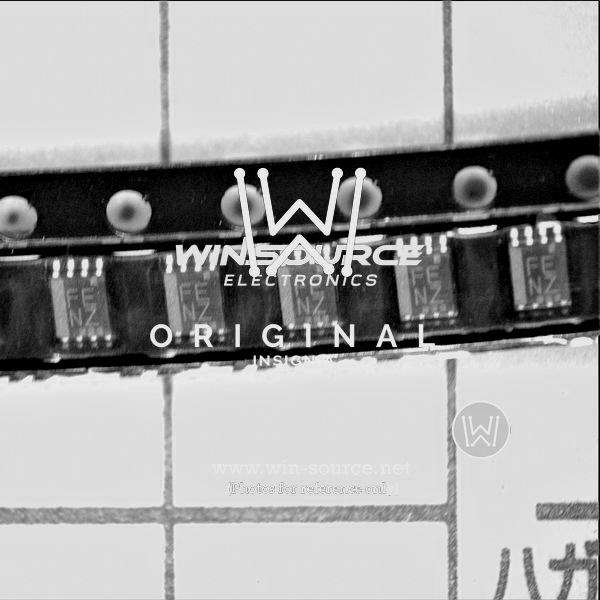

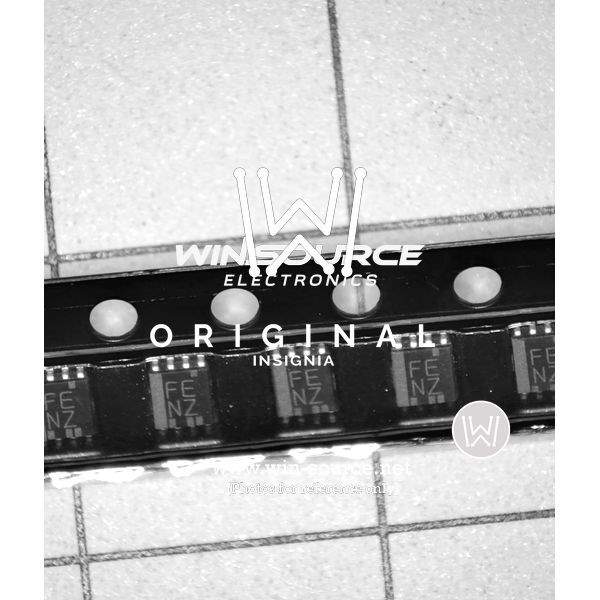

Product Overview: TXS0102DCUR from Texas Instruments

The TXS0102DCUR is a cutting-edge, 2-bit bidirectional voltage-level translator from the renowned semiconductor manufacturer Texas Instruments (TI). This versatile component is a part of TI's TXS series, designed to provide seamless voltage level translation in multi-voltage digital system environments.

Key Features

• Voltage Level Translation: The TXS0102DCUR is capable of translating signals between two different voltage nodes ranging from 1.65V to 5.5V on the A side (VCCA) and 1.65V to 5.5V on the B side (VCCB). This allows for smooth communication between devices operating at different voltage levels.
• Auto-Direction Sensing: The device automatically senses the direction of data flow without the need for a direction control signal, simplifying the design and reducing the number of GPIOs required for interface translation.
• Low Power Consumption: With its low power consumption, the TXS0102DCUR is an excellent choice for battery-operated and power-sensitive applications.
• High-Speed Data Transfer: It supports high-speed data transfer up to 24 Mbps, making it suitable for a wide range of applications, including advanced communication protocols.
• ESD Protection: The device features 15-kV ESD protection on the A and B ports, providing robust protection against electrostatic discharge events.

Applications

The TXS0102DCUR is ideal for a variety of applications that require voltage level translation, such as:

• Mobile Phones
• Tablets
• GPS Systems
• Portable Media Players
• Data Communication Systems

Technical Specifications

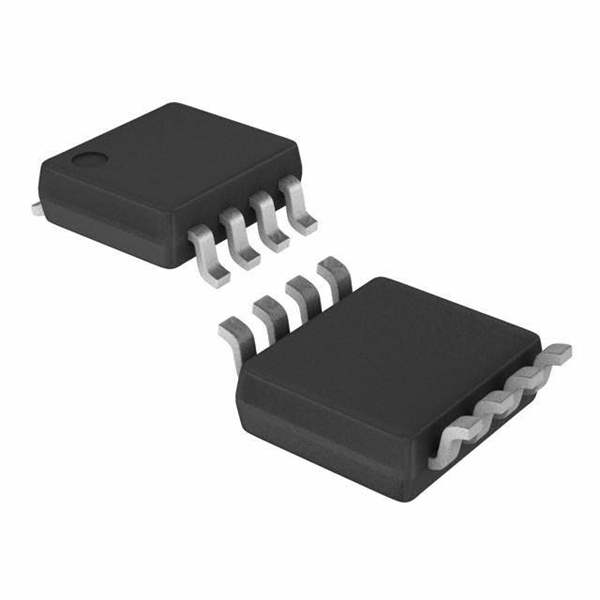

Supplied in a compact 8-VSSOP (0.65mm pitch) package, the TXS0102DCUR is designed for space-constrained applications. It operates over the industrial temperature range of -40°C to 85°C, ensuring reliable performance across diverse operating conditions.

Ordering Information

The TXS0102DCUR is available for order under the Texas Instruments part number TXS0102DCUR. For detailed product information, technical specifications, and ordering options, please visit the Texas Instruments website or contact an authorized distributor.
