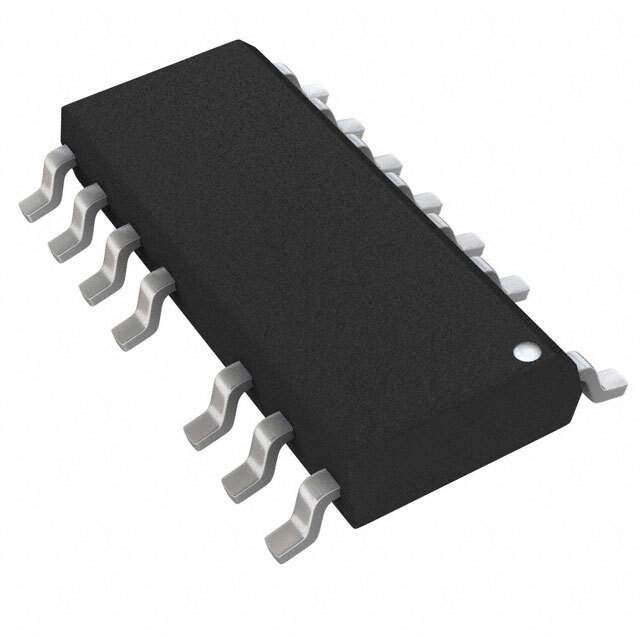

Introducing the UCC25630-4DDBR by Texas Instruments

The UCC25630-4DDBR is a cutting-edge resonant mode LLC controller designed by Texas Instruments, tailored for high-efficiency, high-density power conversion applications. This innovative device is engineered to deliver precise control in switched mode power supplies, particularly resonant converters, which are widely used in the field of power electronics.

Key Features

• Advanced Control: The UCC25630-4DDBR incorporates an intelligent control method that enables zero-voltage switching (ZVS) across a wide range of loads, thereby reducing switching losses and enhancing overall system efficiency.
• Burst Mode Operation: To optimize efficiency at light loads, the device features a burst mode operation which significantly reduces the power consumption when the load demand is low.
• Robust Protection Features: It includes a suite of protection features such as overcurrent, overvoltage, and overtemperature protections, ensuring reliable operation under a variety of fault conditions.
• Programmable Dead Time: Users can tailor the dead time to match specific design requirements, optimizing the performance of the power stage.
• Wide Operating Range: The UCC25630-4DDBR is designed to operate over a wide input voltage range, making it suitable for a diverse set of applications.

Applications

The UCC25630-4DDBR is ideal for a range of applications that demand high efficiency and power density, including but not limited to:

• Server and telecom power supplies
• Flat-panel television and monitor power supplies
• Adapters for notebooks and mobile devices
• Industrial power supplies

With its advanced features and versatile application range, the UCC25630-4DDBR from Texas Instruments stands out as a robust solution for designers looking to optimize their power systems for efficiency and reliability. Whether you’re developing power supplies for consumer electronics, industrial systems, or telecommunication infrastructure, the UCC25630-4DDBR provides the performance and flexibility needed to meet stringent power design requirements.

For detailed technical specifications, application notes, and support tools, please visit the Texas Instruments website or consult the UCC25630-4DDBR datasheet and design resources.
