Product Overview: UCC27201ADRCR

The UCC27201ADRCR, crafted by the renowned semiconductor manufacturer Texas Instruments, is a high-performance, high-frequency half-bridge driver that is designed to deliver exceptional power management solutions for a wide range of applications. This advanced driver IC is capable of driving N-channel power MOSFETs and IGBTs, which makes it a versatile component in modern electronic systems.

Key Features

• High Peak Output Source/Sink Current: The UCC27201ADRCR can deliver a robust peak output current of up to 4A source and 4A sink, enabling it to efficiently drive the gates of power MOSFETs and IGBTs, ensuring rapid switching times and reduced power losses.
• Wide Supply Voltage Range: It operates over a broad supply voltage range from 10V to 20V, providing flexibility in various power management designs and ensuring compatibility with a multitude of power systems.
• Robust Bootstrap Diode: The device includes an integrated high-voltage bootstrap diode with excellent performance characteristics, simplifying the design and reducing external component count.
• High-Side and Low-Side Output: The driver is capable of operating up to 120V, making it suitable for high-side and low-side applications.
• Independent Inputs: Separate high-side and low-side inputs provide designers with the flexibility to implement various topologies and control schemes.
• Extended Temperature Range: The UCC27201ADRCR is designed to perform reliably in extreme conditions, with an operational temperature range from -40°C to 140°C.

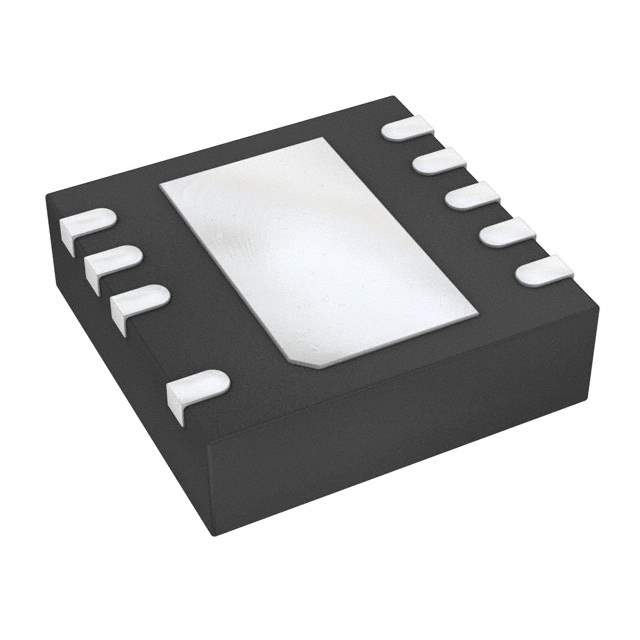

• Industry-Standard Packaging: The device is available in a small VSON-8 package, which is ideal for space-constrained applications.

Applications

The UCC27201ADRCR is adept at serving a multitude of applications due to its high performance and versatility. It is particularly well-suited for:

• DC to AC power inverters
• DC to DC converters
• Motor drives
• Class-D audio amplifiers
• Switch Mode Power Supplies (SMPS)

With its combination of features, the UCC27201ADRCR from Texas Instruments is an ideal choice for designers looking to enhance efficiency, reduce system size, and improve power density in their power management systems.
