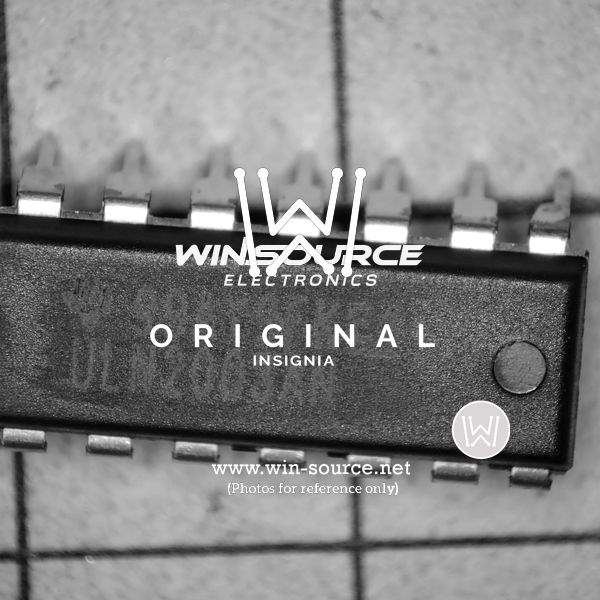

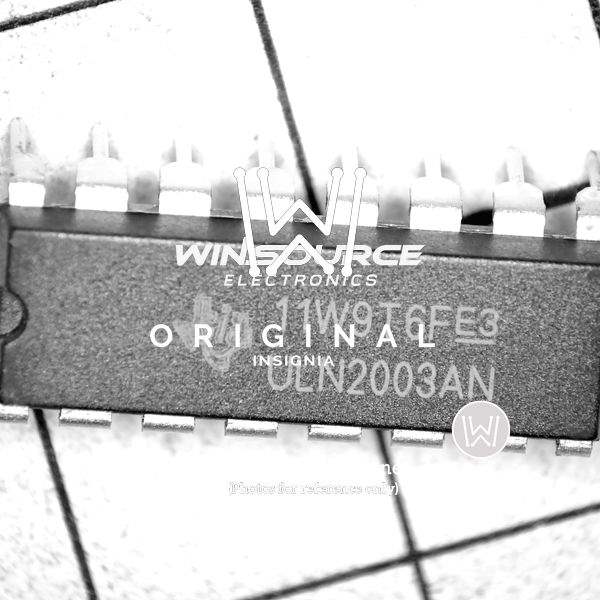

The ULN2003AN from Texas Instruments is a versatile and robust integrated circuit that features a high-voltage, high-current Darlington transistor array. This component is specifically designed to interface between low-level logic circuitry and multiple peripheral power loads. The ULN2003AN is particularly well-suited for driving a wide array of loads such as relays, solenoids, stepper motors, and other high-current or high-voltage devices in a variety of applications.

Key Features:

• Seven Darlington Pairs: Each channel is rated at 500 mA and can withstand peak currents of 600 mA. The high current rating of the channels makes this IC capable of driving many types of loads.
• High Voltage Outputs: The output voltage can go up to 50V, which is suitable for numerous applications that require high voltage levels.
• Output Clamp Diodes: Diodes are included for inductive load transient suppression, which is essential for managing spikes when driving inductive loads like motors or relays.
• Input-Compatible with Various Types of Logic: Compatible with TTL, PMOS, CMOS, and other standard logic families, this makes the ULN2003AN a versatile choice for interfacing with various control devices.

Applications:

The ULN2003AN is used in a variety of applications due to its ability to drive high-current loads. Common applications include:

• Relay Drivers
• Stepper Motor Control Circuits
• LED Displays / LED Matrix Drivers
• Logic Buffers
• Line Drivers

Product Specifications:

Parameter Value Number of Channels 7 Output Current (per channel) 500 mA Peak Output Current 600 mA Output Voltage 50V Mounting Type Through Hole Package / Case 16-PDIP

Overall, the ULN2003AN is a reliable and efficient solution for driving high-power loads, providing both the functionality and flexibility needed for a wide range of electronic applications.
