ULN2003V12DR: High-Voltage, High-Current Darlington Transistor Array

The ULN2003V12DR is a versatile and robust integrated circuit produced by Texas Instruments, designed primarily for driving a wide array of high-voltage and high-current loads. This integrated circuit is part of the ULN2003 family, which is well-known for its reliability and efficiency in handling inductive loads such as relays, solenoids, and stepper motors.

Key Features

• Seven Darlington Pairs: The device includes seven NPN Darlington pairs that can handle a continuous collector current of 500 mA per channel.
• High Voltage Outputs: Each channel can withstand up to 50V, making it suitable for various applications that require higher voltage levels.
• Output Clamp Diodes: Integrated suppression diodes are provided for inductive load transient suppression, enhancing the protection of the circuit and connected components.
• Wide Operating Temperature Range: The ULN2003V12DR is designed to operate reliably within a temperature range of -40°C to 85°C, ensuring stable performance across diverse environmental conditions.
• Input Compatible with Various Types of Logic: Inputs are compatible with popular logic types such as TTL, 5V CMOS, and PMOS, making it easy to interface with a variety of control circuits.

Applications

The ULN2003V12DR is ideally suited for driving high-current loads in a multitude of applications, including but not limited to:

• Relay Drivers
• Stepper Motor Controllers
• LED Displays / LED Matrix Drivers
• Line Drivers
• Logic Buffers

Package and Quality

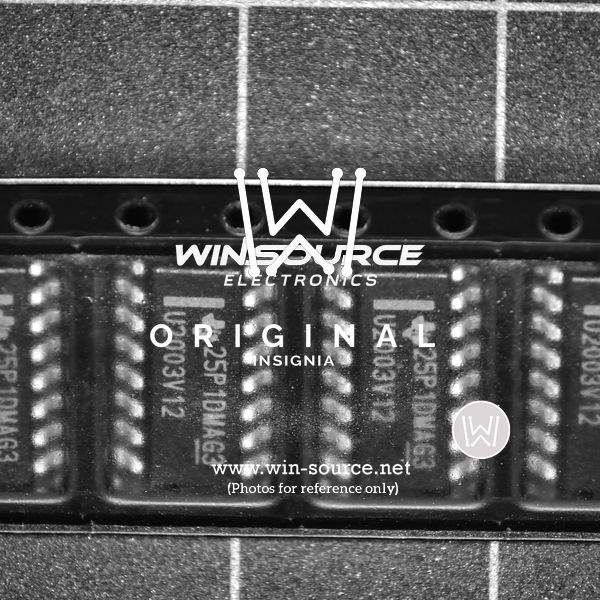

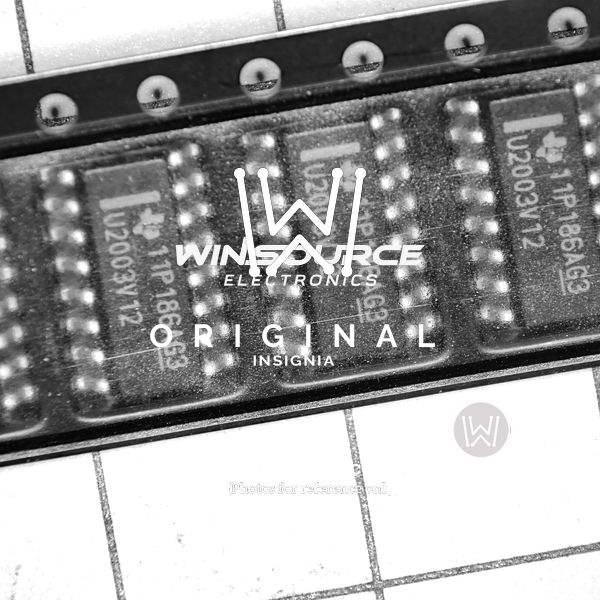

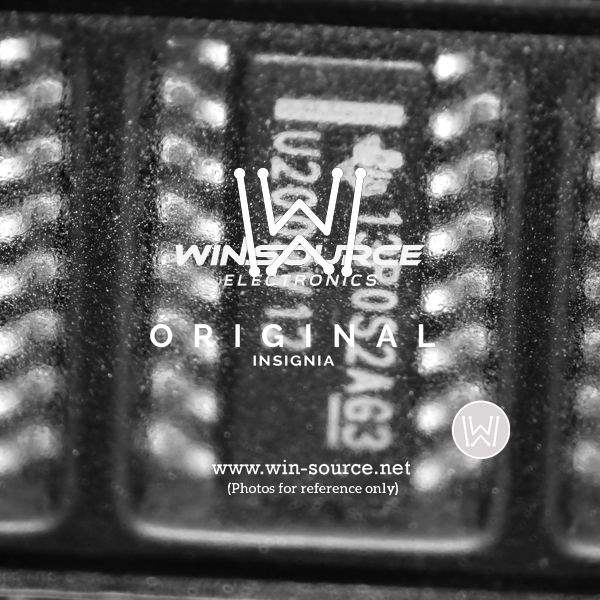

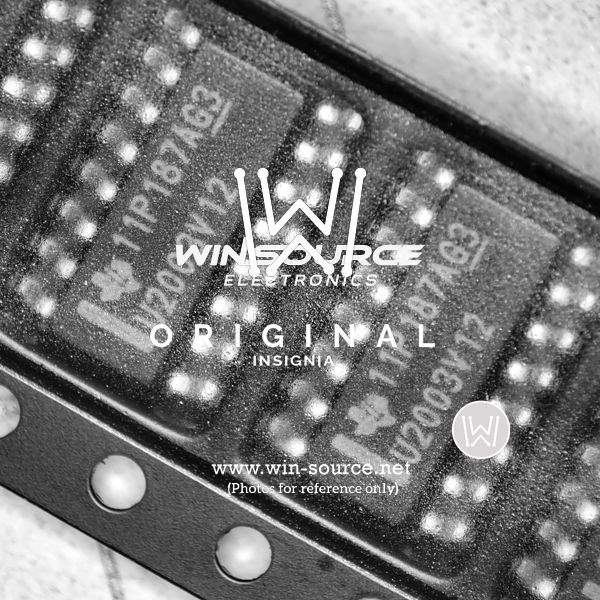

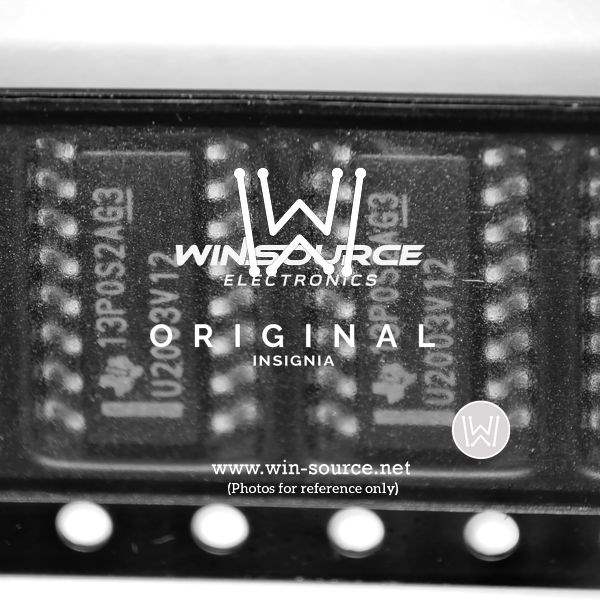

The device comes in a compact 16-pin SOIC package, which is designed for space-saving surface mount technology (SMT) applications. Texas Instruments ensures the highest level of quality and reliability for the ULN2003V12DR, which is rigorously tested and compliant with industry standards.

With its combination of high-voltage and high-current capabilities, integrated protection features, and compatibility with various logic levels, the ULN2003V12DR from Texas Instruments stands out as an excellent choice for designers looking to drive inductive loads efficiently and reliably.
