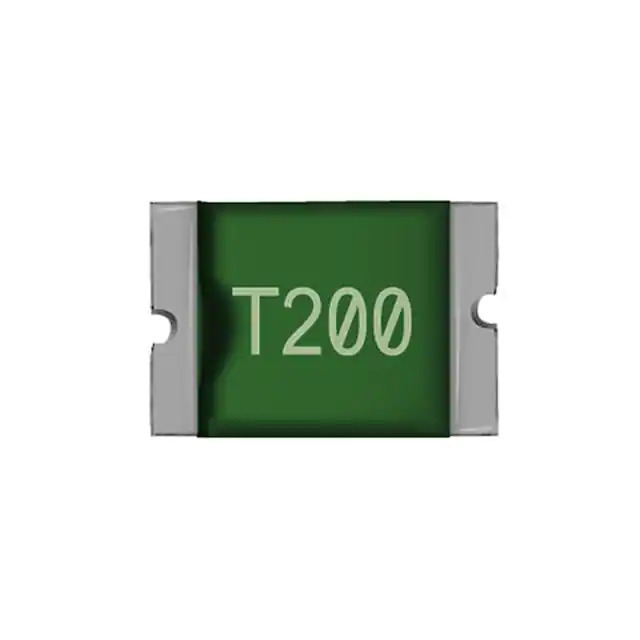

Same model may have multiple batches, images only for reference.
KMC5S200RY Thinking Electronic Industrial Co.,Ltd
Same model may have multiple batches, images only for reference.

KMC5S200RY

Part No KMC5S200RY
Manufacturer Thinking Electronic Industrial Co.,Ltd
Catalog PTC Resettable Fuses
Description Polymer PTC 2.0A Resettable Fuse
Datasheet
KMC5S200RY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Thinking Electronics Industrial Co.
Series KMC
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 8V
Current - Hold (Ih) (Max) 2 A
Current - Trip (It) 3.5 A
Current - Max 100 A
Time to Trip 2 s
Resistance - Initial (Ri) (Min) 20 mOhms
Resistance - Post Trip (R1) (Max) 60 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) -
Thickness (Max) 0.033" (0.85mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 8504.50.4000
Win Source Part Number 1378748-KMC5S200RY
Ultra Librarian 3D Model Ultra Librarian KMC5S200RY CAD Model

Description

The KMC5S200RY is a PTC resettable fuse from Thinking Electronics Industrial Co.

  • Series: KMC
  • Operating Temperature: -40°C ~ 85°C
  • Maximum Current: 100A
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Packaging: Tape & Reel (TR)
  • Status: Active
