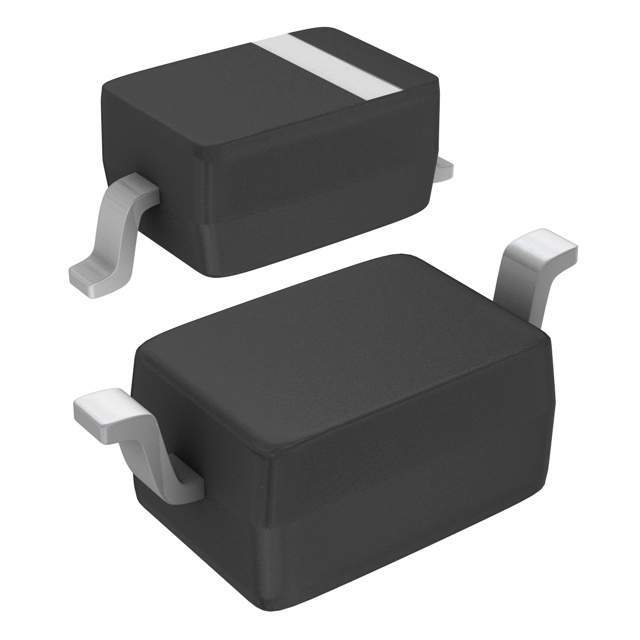

XBS104S13R-G

Name: XBS104S13R-G
Brand: Torex Semiconductor Ltd
SKU: 535722
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XBS104S13R-G
Manufacturer	Torex Semiconductor Ltd
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 40V 1A SOD323A
Datasheet	XBS104S13R-G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Torex Semiconductor Ltd
Packaging	Reel - TR
Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	540mV @ 1A
Speed(Frequency)	Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr)	25ns
Current - Reverse Leakage @ Vr	200μA @ 40V
Capacitance @ Vr, F	35pF @ 10V, 1MHz
Mounting	SMD (SMT)
Case / Package	SOD-323A
Operating Temperature - Junction	125°C (Max)
Win Source Part Number	1118465-XBS104S13R-G
Family Name	XBS104S13R
Introduction Date	August 13, 2007
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	2023
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian XBS104S13R-G CAD Model

Alternative Products

Description

The Torex Semiconductor Ltd XBS104S13R-G is a Schottky diode that is available in a SOD-323A package.

Maximum Reverse Voltage: 40V
Average Rectified Current: 1A
Forward Voltage: 540mV @ 1A
Reverse Recovery Time: 25ns
Current Leakage: 200μA @ 40V
Capacitance: 35pF @ 10V, 1MHz
Supply and Demand Status: Balanced
Estimated EOL Date: 2023
