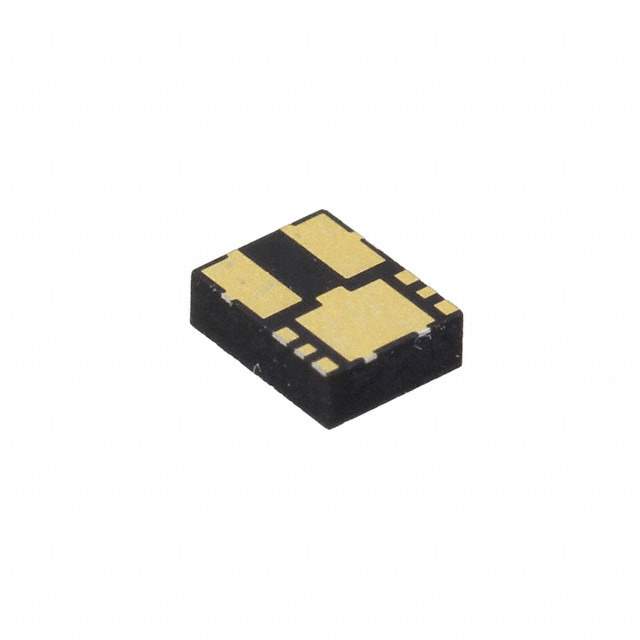

Same model may have multiple batches, images only for reference.

XCL214B123DR

Name: XCL214B123DR
Brand: Torex Semiconductor Ltd
SKU: 769436
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XCL214B123DR
Manufacturer	Torex Semiconductor Ltd
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 1.2V 2W / Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 1.2V 1.5A 9-Pin USP-B01 T/R
Datasheet	XCL214B123DR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Torex Semiconductor Ltd
Series	XCL214
Packaging	Reel package
Type	Non-Isolated PoL Module
Number of Outputs	1
Input Voltage MIN	2.7V
Voltage Input MAX	5.5V
Voltage - Output 1	1.2V
Current - Output (Maximum)	1.5A
Applications	ITE (Commercial)
Features	OCP, OTP, SCP, UVLO
Operating Temperature Range	-40°C ~ 85°C
Efficiency	92%
Mounting	SMD
Package	9-PowerTFQFN
Dimension	0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm)
Manufacturer Package	USP-9B01
Win Source Part Number	769436-XCL214B123DR
Popularity	Medium
Supply and Demand Status	Balance
Family Name	XCL214
Introduction Date	July 29, 2013
Country of Origin	Japan
Estimated EOL Date	2023
Ultra Librarian 3D Model	Ultra Librarian XCL214B123DR CAD Model

Alternative Products

Description

The Torex Semiconductor Ltd XCL214B123DR is a non-isolated PoL module with a voltage output of 1.2V and an efficiency of 92%.

Protections: Overcurrent (OCP), Over-Temperature (OTP), Short-Circuit (SCP), Undervoltage Lockout (UVLO)
Family Name: XCL214
Mounting Type: SMD
Dimensions: 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm)
Package: 9-PowerTFQFN
Operating Temperature Range: -40°C ~ 85°C
Category: Power Supplies - Board Mount
Supply and Demand Status: Balanced
