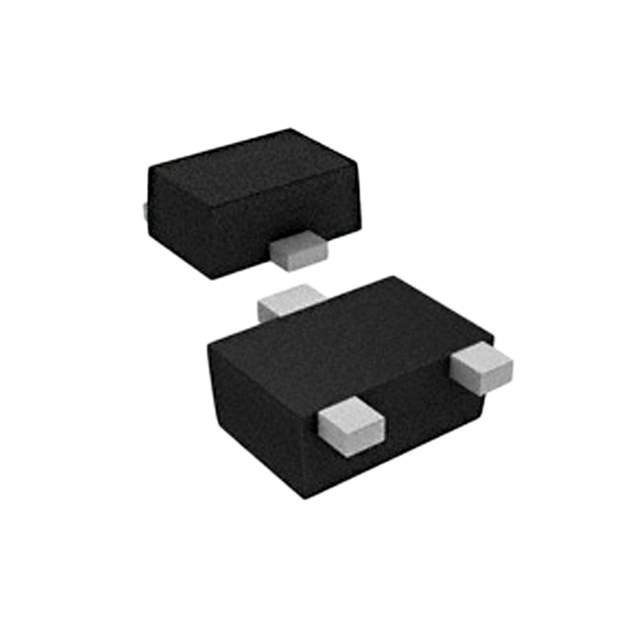

The 1SS361F is a high-speed switching diode manufactured by Toshiba Semiconductor and Storage. This diode is designed for various high-speed switching applications where fast response and low forward voltage are crucial. It is typically found in small signal circuits where quick and efficient switching is required.

Applications

• High-speed switching circuits
• Signal detection circuits
• Clipping and clamping circuits
• Protection circuits for sensitive electronic components
• Mobile communication devices

Features

• Fast Reverse Recovery Time: Offers rapid switching speeds, reducing signal distortion.
• Low Forward Voltage: Minimizes power loss and enhances circuit efficiency.
• Small Package Size: Enables compact circuit designs and efficient space utilization.
• High Reliability: Ensures stable performance under diverse operating conditions.
• Surface Mount Device (SMD): Facilitates automated assembly and high-density mounting.

Benefits

• Improved Circuit Performance: The fast switching speed enhances the overall performance of the electronic circuit.
• Reduced Power Consumption: The low forward voltage drop leads to lower power dissipation and improved energy efficiency.
• Space Saving: The compact package allows for smaller and more densely packed circuit boards.
• Increased System Reliability: The robust design of the diode ensures long-term reliability and stability.
• Simplified Manufacturing: Surface mount design allows for automated assembly, reducing manufacturing time and costs.

Additional Details

The 1SS361F's electrical characteristics include a low forward voltage drop, typically around 0.4V to 0.6V at a specified forward current. It also features a fast reverse recovery time, usually in the nanosecond range. This diode is commonly available in a small surface-mount package such as SOD-523 or similar. The exact specifications can vary slightly, so it is important to refer to the manufacturer's datasheet for precise details. The diode is made from silicon and is designed to operate within a specified temperature range.
