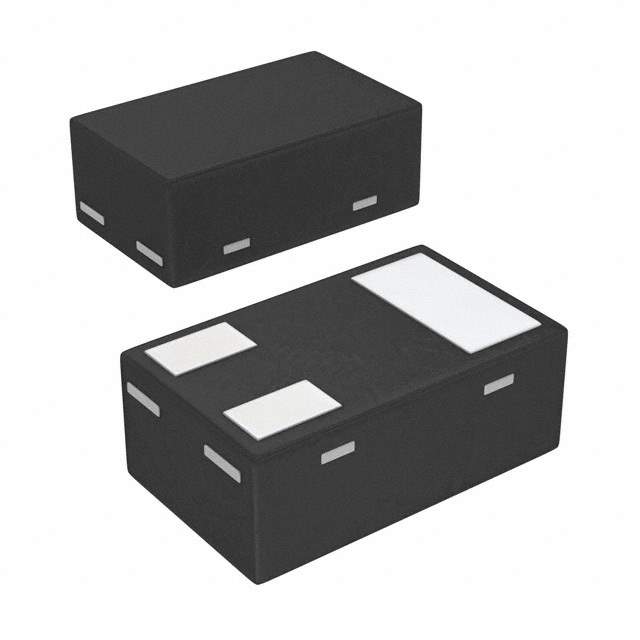

The 2SA2154CT-Y is a PNP silicon epitaxial planar transistor manufactured by Toshiba Semiconductor and Storage. This transistor is designed for switching and amplifier applications requiring low saturation voltage and high current capability. The 'CT' in the part number indicates a specific lead forming style and the 'Y' denotes the gain ranking category within the production batch.

Applications

• DC-DC converters: Used in switching regulator circuits for efficient voltage conversion.
• Motor control: Employed in circuits driving small DC motors or controlling actuators.
• Power management: Suitable for load switching and power distribution applications.
• General Amplification: Usable in general purpose amplifier stages for signal amplification.

Features

• PNP silicon epitaxial planar transistor.
• Low saturation voltage (VCE(sat)).
• High collector current (IC) capability.
• High current gain (hFE).
• Compact package.

Benefits

• Enhances power efficiency in switching applications.
• Reduces power loss and heat generation.
• Enables control of high current loads.
• Simplifies circuit design.

Technical Specifications (Typical)

• Collector-Base Voltage (VCBO): -60V
• Collector-Emitter Voltage (VCEO): -50V
• Emitter-Base Voltage (VEBO): -6V
• Collector Current (IC): -3A
• Collector Power Dissipation (PC): 1W
• Current Gain (hFE): Typically ranges from 200 to 400, dependent upon the 'Y' ranking.
• Operating Junction Temperature: 150°C

The 2SA2154CT-Y is a robust PNP transistor suited for demanding switching and amplification tasks. Its low saturation voltage and high current handling capabilities make it a great option for increasing overall power efficiency, particularly in battery-powered or thermally sensitive applications. The gain ranking ('Y') facilitates transistor selection for optimized circuit performance based on required amplification factor. With reliable performance across a range of operating conditions, this component is well-suited for a variety of circuit design applications.
