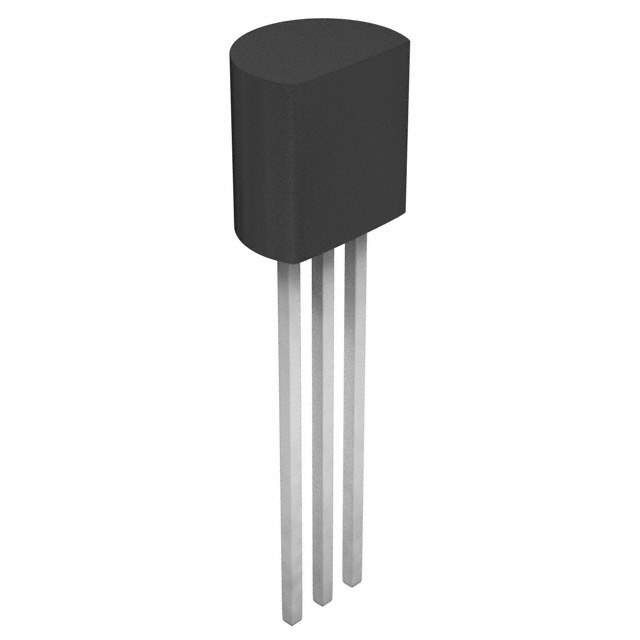

2SC2235-Y(T6CANOFM Real Image
Same model may have multiple batches, images only for reference.

2SC2235-Y(T6CANOFM

Part No 2SC2235-Y(T6CANOFM
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors (BJT) - Single
Description TRANS NPN 800MA 120V TO226-3
Datasheet
2SC2235-Y(T6CANOFM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Bulk
Transistor Polarity NPN
Maximum Current Collector 800mA
VCEO Maximum Collector-Emitter Breakdown Voltage 120V
Max Vce (sat) 1V @ 50mA, 500mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 80 @ 100mA, 5V
Maximum Power Dissipation 900mW
Frequency - Transition 120MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-92MOD
Win Source Part Number 1004345-2SC2235-Y(T6CANOFM
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SC2235-Y(T6CANOFM CAD Model

Description

The Toshiba Semiconductor and Storage 2SC2235-Y(T6CANOFM) is a medium-popularity NPN transistor.

  • Frequency Transition: 120MHz
  • Maximum Collector-Emitter Breakdown Voltage: 120V
  • Maximum Current Collector: 800mA
  • Collector Cut-Off Current (Max): 100nA (ICBO)
  • Typical Gain (hFE) (Min) @ 100mA, 5V: 80 @ 100mA, 5V
  • Maximum Power Dissipation: 900mW
  • Case/Package: TO-92MOD
  • Mounting Type: Through Hole
