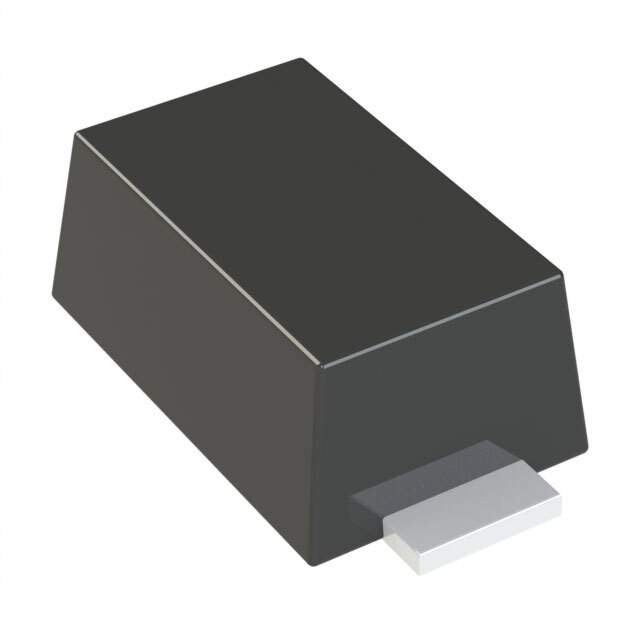

The CRF02(TE85L is a surface-mount Schottky barrier diode manufactured by Toshiba Semiconductor and Storage. Schottky diodes are known for their fast switching speeds and low forward voltage drop compared to standard diodes, making them suitable for high-frequency applications and circuits where minimizing power loss is crucial.

Applications

• High-frequency rectification
• Switching power supplies
• DC-DC converters
• Reverse polarity protection
• Clamping diodes

Features

• Low forward voltage drop: Minimizes power dissipation and improves efficiency.
• Fast switching speed: Enables operation at high frequencies.
• Surface-mount package (SMD): Suitable for automated assembly and compact designs.
• High surge current capability: Provides robustness against transient voltage spikes.
• Small package size: Allows for dense circuit layouts.

Benefits

• Improved energy efficiency: The low forward voltage drop reduces power loss in rectification and switching applications, leading to energy savings.
• Faster circuit response: The fast switching speed enables quicker response times in high-frequency circuits.
• Compact design: The small surface-mount package allows for smaller and more densely packed circuit boards.
• Enhanced reliability: The high surge current capability protects the diode from damage due to voltage spikes.
• Simplified assembly: The surface-mount package is suitable for automated assembly processes, reducing manufacturing costs.

Additional Details

The CRF02(TE85L is typically used in applications where a fast-switching, low-loss diode is required. Key electrical characteristics include a low forward voltage (Vf), a high surge current capability (Ifsm), and a fast reverse recovery time (trr). Its compact size and surface-mount configuration make it easy to integrate into modern electronic designs. The TE85L designation indicates a specific taping and reel packaging for automated assembly. The absolute maximum ratings, such as peak reverse voltage and forward current, are crucial for ensuring the diode's reliability and preventing damage during operation.
