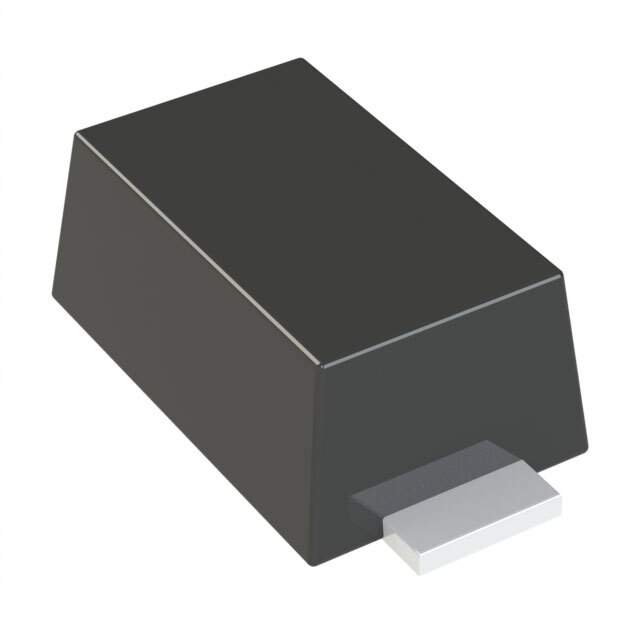

The CRS06(TE85L is a surface-mount Schottky Barrier Diode manufactured by Toshiba Semiconductor and Storage. It's designed for high-speed switching applications with low forward voltage drop and fast reverse recovery time. This diode is commonly used in various electronic circuits for rectification, voltage clamping, and protection.

Applications

• High-frequency rectification: Used in switch-mode power supplies (SMPS) and DC-DC converters.
• Reverse polarity protection: Protects circuits from damage due to incorrect power supply polarity.
• Voltage clamping: Limits voltage spikes to protect sensitive components.
• Freewheeling diode: Provides a path for current when switching inductive loads.
• RF detectors: Detects and demodulates radio frequency signals.

Features

• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• Fast Switching Speed: Enables high-frequency operation.
• Surface Mount Package: Suitable for automated assembly.
• High surge current capability: Provides robustness against transient overcurrent conditions.
• Small size: Allows for compact circuit designs.

Benefits

• Improved Efficiency: The low forward voltage drop results in reduced power dissipation and higher efficiency in power conversion circuits.
• Enhanced Circuit Protection: Protects sensitive components from voltage spikes and reverse polarity issues.
• Reduced Power Loss: Minimizes heat generation and improves overall circuit reliability.
• Compact Design: The small surface mount package allows for denser and more compact circuit layouts.
• Reliable Performance: Consistent and dependable operation in a variety of applications.

Additional Details

The CRS06(TE85L has a maximum repetitive peak reverse voltage (VRRM) typically around 60V. Its average forward current (IF(AV)) is approximately 0.5A. The operating temperature range is typically -40°C to +125°C. The specific forward voltage and reverse leakage current characteristics will vary based on the manufacturer's datasheet. The device is RoHS compliant, ensuring it meets environmental standards regarding hazardous substances.
