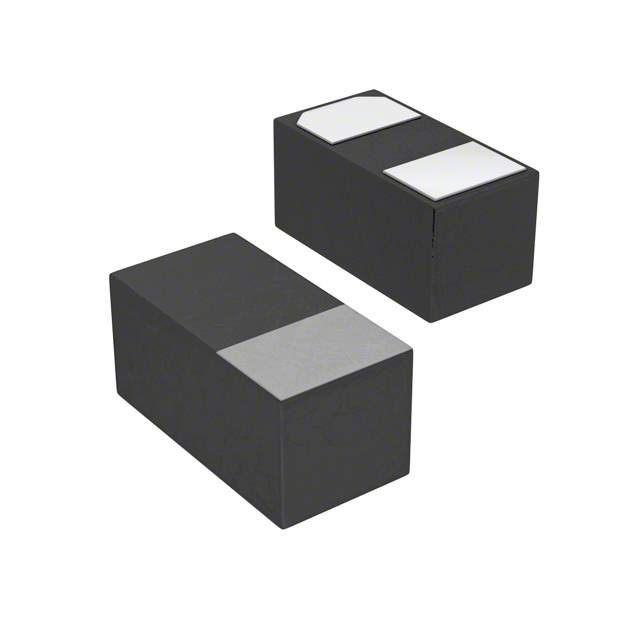

DSF01S30SC(TPL3) Real Image
Same model may have multiple batches, images only for reference.

DSF01S30SC(TPL3)

Part No DSF01S30SC(TPL3)
Manufacturer Toshiba Semiconductor and Storage
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 100MA SC2
Datasheet
DSF01S30SC(TPL3) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 500mV @ 100mA
Current - Reverse Leakage @ Vr 50μA @ 30V
Capacitance @ Vr, F 9.3pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SC2
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1035212-DSF01S30SC(TPL3)
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DSF01S30SC(TPL3) CAD Model

Description

The Toshiba Semiconductor and Storage DSF01S30SC(TPL3) is a Schottky diode with a maximum reverse voltage of 30V and an average rectified current of 100mA.

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 100mA
  • Forward Voltage: 500mV @ 100mA
  • Reverse Leakage Current: 50μA @ 30V
  • Capacitance: 9.3pF @ 0V and 1MHz
  • Maximum Junction Temperature: 125°C
  • Package Type: SC2
  • Mounting Technology: SMD
  • Applications: power supplies, DC-DC converters, and voltage clamping circuits
