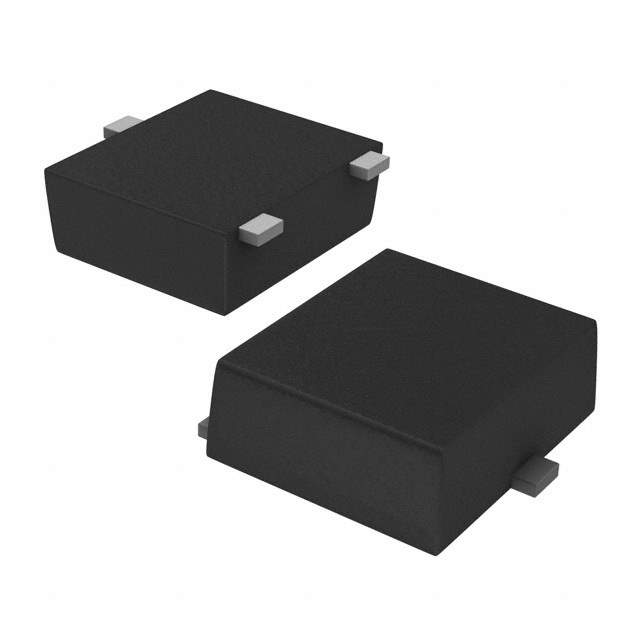

SSM3J132TU Real Image
Same model may have multiple batches, images only for reference.

SSM3J132TU

Part No SSM3J132TU
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors - FETs, MOSFETs - RF
Description X34 PB-F SMALL LOW ON RESISTANCE
Datasheet
SSM3J132TU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 5.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.2V, 4.5V
Gate-Source Threshold Voltage 1V @ 1mA
Max Gate Charge 33nC @ 4.5V
Max Input Capacitance 2700pF @ 10V
Maximum Gate-Source Voltage ±6V
Power Dissipation (Max) 500mW (Ta)
Maximum Rds On at Id,Vgs 17 mOhm @ 5A, 4.5V
Temperature Range - Operating 150°C
Mounting SMD (SMT)
Case / Package UFM
Dimension 3-SMD, Flat Leads
Win Source Part Number 192875-SSM3J132TU
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SSM3J132TU CAD Model

Description

The Toshiba Semiconductor and Storage SSM3J132TU is a P-channel MOSFET that is manufactured by Toshiba Semiconductor and Storage.

  • Supply and Demand Status: sufficient
  • Type: surface-mount device
  • Applications: various electronic devices
  • Maximum Drain-Source Voltage: -12V
  • Maximum Continuous Drain Current: -5.4A
  • Features: low on-resistance and fast switching speed
  • Suitable For: power management, battery charging, and load switching applications
