The SSM5G10TU(TE85L is a P-Channel MOSFET manufactured by Toshiba Semiconductor and Storage. It is designed for use in load switching, DC-DC converters, and other power management applications where a P-Channel MOSFET is required. Its key features include low on-resistance and compact size, which are desirable for efficient and space-saving designs.

Applications:

• Load switch circuits
• DC-DC converters
• Power management in portable devices
• Battery protection circuits
• High-side switching

Features:

• P-Channel MOSFET
• Low on-resistance (RDS(on))
• Surface mount package
• Low gate charge
• Lead-free terminal plating

Benefits:

• Increased efficiency due to low on-resistance, reducing power loss
• Compact design suitable for space-constrained applications
• Simplified gate drive requirements due to low gate charge
• Environmentally friendly due to lead-free construction

Additional Details:

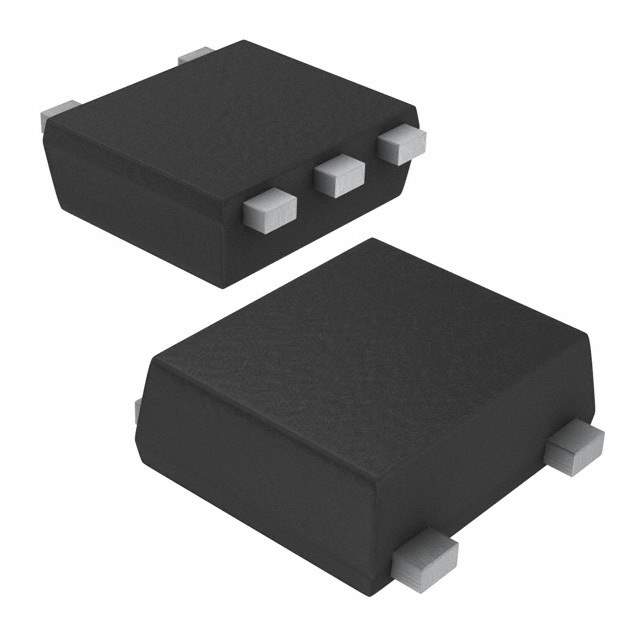

The SSM5G10TU(TE85L typically features a drain-source voltage rating of -30V and a continuous drain current rating of around -1.5A. The on-resistance (RDS(on)) is usually specified at a gate-source voltage (VGS) of -10V and is typically in the range of 0.2 Ohms. It is housed in a small surface mount package. For precise electrical characteristics, thermal performance, and package dimensions, refer to the official datasheet provided by Toshiba Semiconductor and Storage for the SSM5G10TU(TE85L.
