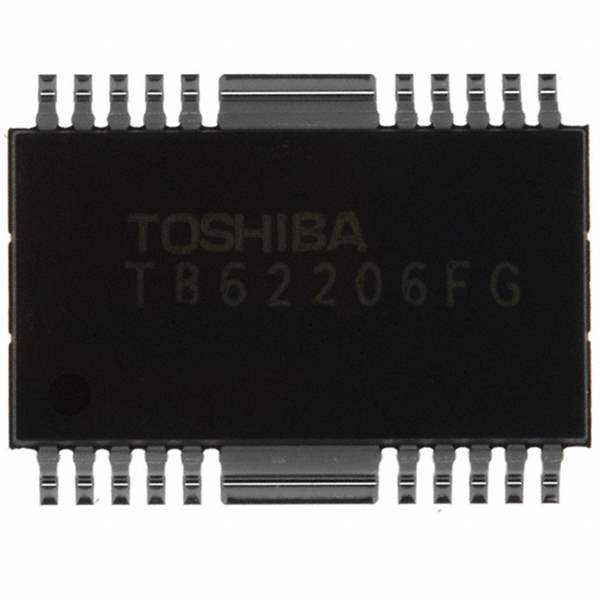

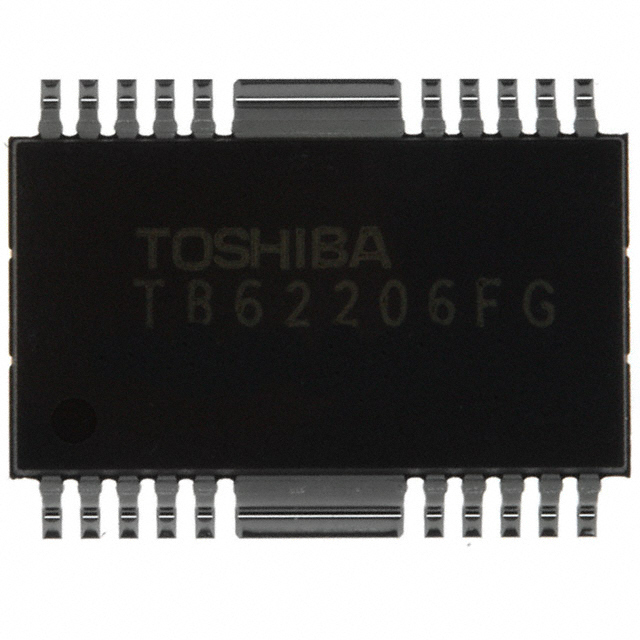

TB62206FG,EL Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TB62206FG,EL

Part No TB62206FG,EL
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 20HSOP
Datasheet
TB62206FG,EL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Obsolete(EOL)
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology DMOS
Step Resolution 1, 1/2
Applications General Purpose
Output Current 1.5A
Supply Voltage - Operating 4.5 V to 5.5 V
Voltage - Load 13 V to 35 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 20-HSOP
Win Source Part Number 140623-TB62206FG,EL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TB62206FG,EL CAD Model

Description

The Toshiba Semiconductor and Storage TB62206FG,EL is a fully integrated driver with control and power stage designed for bipolar stepper motors.

  • Package: Reel
  • Step Resolution: 1 and 1/2
  • Supply Voltage: 4.5 V to 5.5 V
  • Voltage Load Range: 13 V to 35 V
  • Temperature Range: -40°C to 150°C.
  • Supply and Demand Status: Limited.
