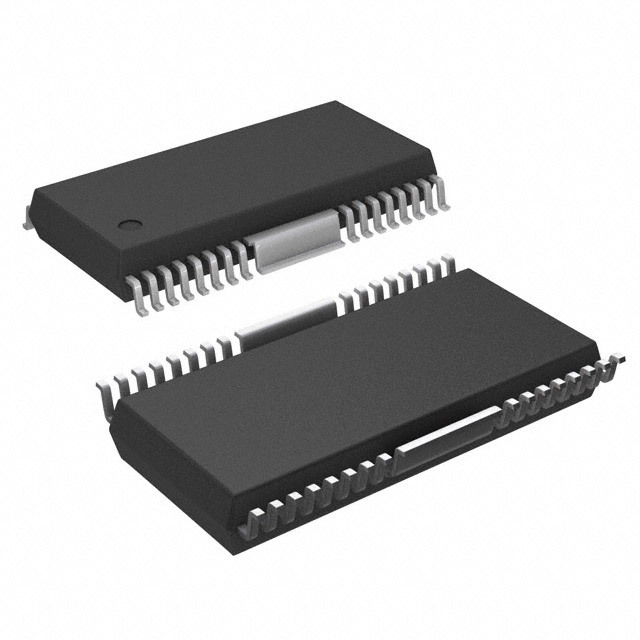

TB62214AFG,C8,EL Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TB62214AFG,C8,EL

Part No TB62214AFG,C8,EL
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER BIPOLAR 28HSOP / Bipolar Motor Driver DMOS Parallel 28-HSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology DMOS
Step Resolution 1, 1/2, 1/4
Applications General Purpose
Current - Output 2A
Voltage - Supply 4.75V ~ 5.25V
Voltage - Load 10V ~ 38V
Temperature Range - Operating -20°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 28-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs
Supplier Device Package 28-HSOP
Base Product Number TB62214
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names TB62214AFG(O,C8,EL,TB62214AFG(OC8ELCT,TB62214AFG(OC8ELTR,TB62214AFG(OC8ELDKR,TB62214AFG(OC8ELDKR-ND,TB62214AFGC8ELDKR,TB62214AFGC8ELTR,TB62214AFG(OC8ELCT-ND,TB62214AFG(OC8ELTR-ND,TB62214AFGC8ELCT
Standard Package 2,000
Win Source Part Number 1231292-TB62214AFG,C8,EL
Ultra Librarian 3D Model Ultra Librarian TB62214AFG,C8,EL CAD Model

Description

The TB62214AFG,C8,EL is an integrated circuit that functions as a fully integrated driver and control power stage.

  • Current Output: 2A
  • Output Configuration: half-bridge
  • Motor Type: four bipolar stepper motor
  • Voltage Load: 10V to 38V
  • Interface: parallel
  • Package: tape and reel
  • Mounting: surface-mount
  • Technology: DMOS
  • Step Resolution: 1, 1/2, and 1/4
  • Voltage Supply: 4.75V to 5.25V
  • Case: 28-BSOP with 2 heat tabs
  • Temperature Range: -20°C to 150°C
