TB6549HQ(O) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

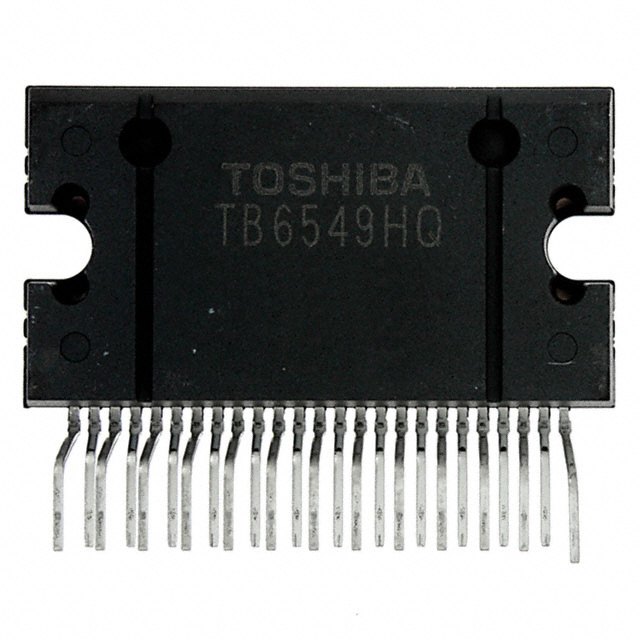

TB6549HQ(O)

Part No TB6549HQ(O)
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 25HZIP
Datasheet
TB6549HQ(O) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Obsolete(EOL)
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bi-CMOS
Applications General Purpose
Output Current 4.5A
Supply Voltage - Operating 10 V to 27 V
Voltage - Load 10 V to 27 V
Temperature Range - Operating -20°C to 85°C (TA)
Mounting Through Hole
Case / Package 25-HZIP
Win Source Part Number 1105552-TB6549HQ(O)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TB6549HQ(O) CAD Model

Description

The Toshiba Semiconductor and Storage TB6549HQ(O) is a fully integrated driver control and power stage with a 4.5A output current.

  • Output Current: 4.5A
  • Motor Type: brushed DC
  • Voltage Load: 10V to 27V
  • Step Resolution: not specified
  • Applications: general purpose
  • Technology: bi-CMOS
  • Supply Voltage: 10V to 27V
  • Mounting: through hole
  • Temperature Range: -20°C to 85°C (TA)
  • Case/Package: 25-HZIP
  • Status: obsolete (EOL)
  • Popularity: medium
