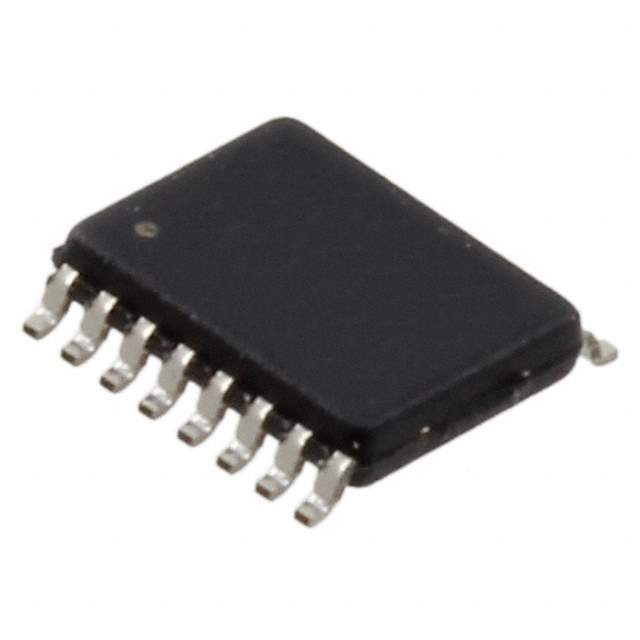

TC74VHC165FK

Part No TC74VHC165FK
Manufacturer Toshiba Semiconductor and Storage
Catalog Logic - Shift Registers
Description 8-Bit Shift Register (P-IN, S-OUT)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Toshiba Semiconductor and Storage
Win Source Part Number 1265125-TC74VHC165FK
Manufacturer Homepage www.semicon.toshiba.co.jp/eng
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TC74VHC165FK CAD Model

Description

The TC74VHC165FK is an 8-bit parallel-in/serial-out shift register from Toshiba. It belongs to the VHC (Very High-Speed CMOS) family, offering high-speed operation and low power consumption. This device is designed for applications requiring parallel-to-serial data conversion, such as data transmission, keyboard scanning, and interfacing with microcontrollers. Its versatile operation and high-speed performance make it suitable for various digital systems.

Applications

  • Data Transmission: Used in serial data transmission systems.
  • Keyboard Scanning: Employed in keyboard scanning circuits to convert parallel key presses to serial data.
  • Microcontroller Interfacing: Found in systems where a microcontroller needs to receive data from a parallel source.
  • Data Multiplexing: Utilized in data multiplexing applications.
  • Digital Logic Systems: General-purpose shift register for digital circuits.

Features

  • High-Speed Operation: Offers a typical propagation delay of 5.5 ns at VCC = 5V.
  • Low Power Consumption: Features low quiescent current, minimizing power dissipation.
  • Wide Operating Voltage Range: Operates from 2V to 5.5V.
  • 8-Bit Parallel-In/Serial-Out: Converts 8-bit parallel data to serial data.
  • Synchronous Operation: Data is shifted on the positive edge of the clock signal.

Benefits

  • Improved System Performance: High-speed operation enables faster data transmission and processing.
  • Reduced Power Consumption: Low power consumption contributes to energy efficiency and longer battery life.
  • Flexible Operation: Wide operating voltage range allows for use in various systems.
  • Versatile Data Conversion: Converts parallel data to serial data for various applications.
  • Compact Design: Small package size facilitates space-saving designs.

Additional Details

The TC74VHC165FK is available in a SOP (Small Outline Package). It operates over a temperature range of -40°C to +85°C. The input pins are equipped with protection diodes to guard against electrostatic discharge (ESD). This component is lead-free and RoHS compliant.
