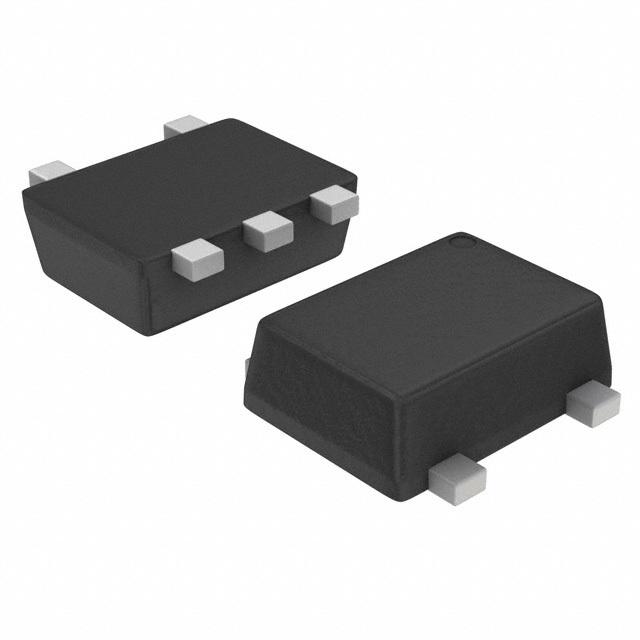

The TC7SZ126FE,LJ is a single gate buffer/line driver from Toshiba Semiconductor and Storage. This tiny logic device is designed for low-voltage operation and high-speed performance, making it suitable for a variety of portable and space-constrained applications. The device is fabricated using advanced CMOS technology to achieve low power consumption and high noise immunity.
Applications:
- Mobile Phones: Used for signal buffering and driving in mobile phone circuitry.
- Portable Electronics: Suitable for use in devices like tablets, MP3 players, and other handheld gadgets.
- Low-Voltage Logic Systems: Employed in systems requiring low-voltage operation to conserve power.
- Signal Buffering: Acts as a buffer to strengthen weak signals.
- Line Driving: Drives signals over longer distances on a circuit board.
Features:
- Single Gate Buffer/Line Driver: Contains one buffer gate, minimizing board space.
- Low Voltage Operation: Operates from 1.65 V to 5.5 V, suitable for battery-powered devices.
- High-Speed Performance: Offers fast propagation delay times for high-speed operation.
- Low Power Consumption: Minimizes power consumption for extended battery life.
- CMOS Technology: Fabricated using advanced CMOS technology for high noise immunity.
- Small Package: Available in a small package (typically 5-pin or 6-pin), making it ideal for space-constrained applications.
Benefits:
- Space Saving: Its small package size allows for compact circuit designs, crucial for portable devices.
- Extended Battery Life: Low power consumption helps to prolong battery life in portable applications.
- Improved Signal Integrity: Acts as a buffer to strengthen weak signals, ensuring reliable data transmission.
- High-Speed Operation: Fast propagation delay times enable high-speed performance in demanding applications.
- Wide Operating Voltage Range: Operates from 1.65V to 5.5V making it suitable for a variety of applications.
Additional Details:
The TC7SZ126FE,LJ is typically available in a small surface-mount package, such as a SOT-23 or similar. Its operating temperature range generally spans from -40°C to +85°C, making it suitable for a wide range of environmental conditions. The propagation delay time is typically in the nanosecond range, depending on the supply voltage and load capacitance. The input and output are compatible with TTL and CMOS logic levels. It offers excellent signal integrity due to its high output drive capability and low output impedance.
