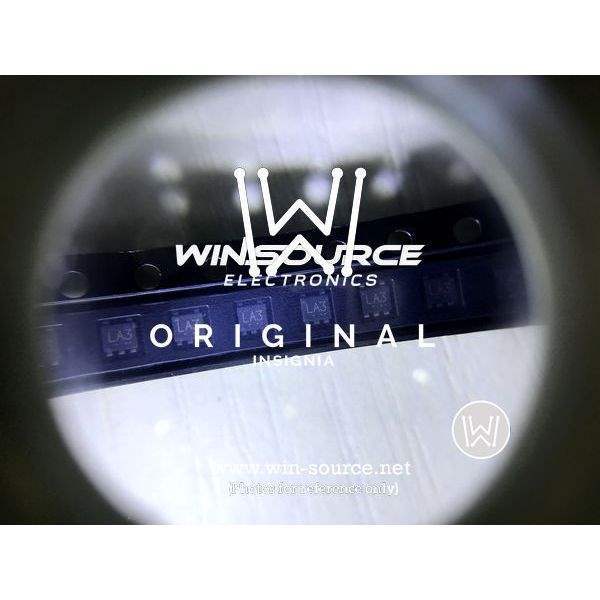

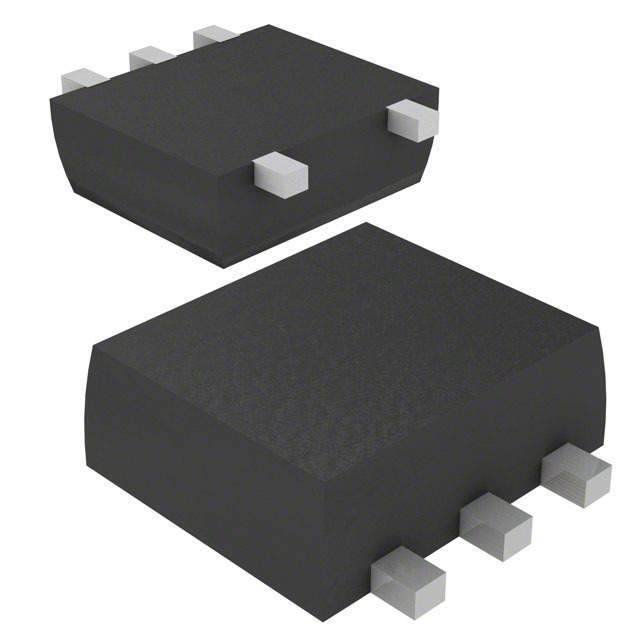

TCS10DLU(TE85L,F)

Name: TCS10DLU(TE85L,F)
Brand: Toshiba Semiconductor and Storage
SKU: 360657
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TCS10DLU(TE85L,F)
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Magnetic Sensors - Switches (Solid State)
Description	MAGNETIC SWITCH OMNIPOLAR 5-UFV
Datasheet	TCS10DLU(TE85L,F) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Sensors, Transducers
Manufacturer	Toshiba Semiconductor and Storage
Packaging	Reel - TR
Status	Obsolete(EOL)
Purpose	Omnipolar Switch
Technology	Hall Effect
Polarization	Either
Sensing Range	±2.5mT Trip, ±0.3mT Release
Testing Conditions	25°C
Supply Voltage - Operating	2.3 V to 3.6 V
Current - Supply (Max)	1.3mA
Current - Output (Max)	5mA
Output Type	Open Drain
Temperature Range - Operating	-40°C to 85°C (TA)
Case / Package	5-UFV
Win Source Part Number	111293-TCS10DLU(TE85L,F)
Family Name	TCS10DLU
Introduction Date	January 30, 2009
Country of Origin	Japan
Estimated EOL Date	2019
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Application Field	Used in Sensing & Instrumentation
Ultra Librarian 3D Model	Ultra Librarian TCS10DLU(TE85L,F) CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage 111293-TCS10DLU(TE85L,F) is a hall effect sensor with an open drain output type. Bold the product name (e.g., BAV99S,135 → 111293-TCS10DLU(TE85L,F)) and manufacturer (e.g., Nexperia USA Inc. → Toshiba Semiconductor and Storage).

Output Type: open drain
Sensing Range: ±2.5mT trip and ±0.3mT release
Maximum Supply Current: 1.3mA
Case/Package: 5-UFV
Application: omnipolar switch
Operating Temperature Range: -40°C to 85°C
Supply Voltage Range: 2.3V to 3.6V
Supply and Demand Status: limited
