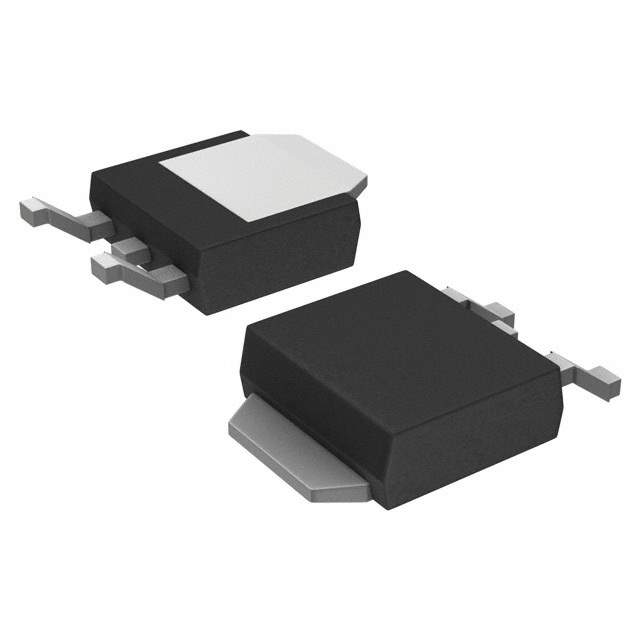

The TK10P60W is a 600V, 10A N-channel power MOSFET from Toshiba Semiconductor and Storage. This MOSFET is designed for high-voltage, high-current switching applications, offering low on-resistance and fast switching speeds. Its robust design and advanced process technology make it suitable for use in power supplies, motor control, and other power electronics applications.

Applications:

• Switching power supplies
• Motor control circuits
• DC-DC converters
• Inverters
• Lighting ballasts

Features:

• 600V Drain-Source Voltage (VDS)
• 10A Continuous Drain Current (ID)
• Low On-Resistance (RDS(on))
• Fast Switching Speed
• Avalanche Energy Rated
• RoHS Compliant

Benefits:

• High efficiency in power conversion applications
• Reduced power losses due to low on-resistance
• Improved switching performance
• Robust design for reliable operation
• Suitable for high-voltage applications
• Environmentally friendly

Additional Details:

The TK10P60W power MOSFET utilizes an advanced process technology to achieve low on-resistance, minimizing conduction losses and improving overall efficiency. Its fast switching speed reduces switching losses, further enhancing efficiency. The device is avalanche energy rated, providing protection against voltage transients and ensuring robust operation. The TK10P60W is typically used in switching power supplies to convert AC voltage to DC voltage efficiently. It is also used in motor control circuits to control the speed and torque of electric motors. The MOSFET is available in a standard through-hole package, facilitating easy mounting and heat sinking. It is designed to operate over a wide temperature range, ensuring reliable performance in various environmental conditions. The TK10P60W is a high-performance and reliable solution for a wide range of power electronics applications.
