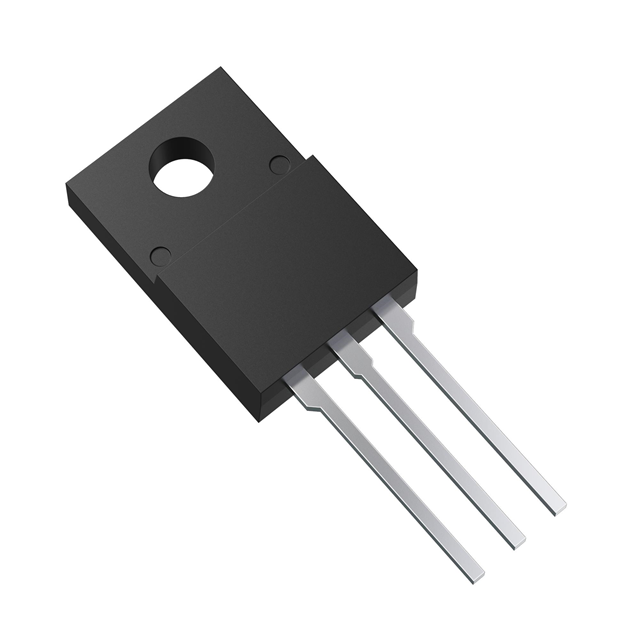

The 936580-TK750A60F,S4X is an N-Channel MOSFET transistor manufactured by Toshiba Semiconductor and Storage.

• Series: U-MOSIX series
• Package: through-hole TO-220-3 full pack package
• Drain to Source Voltage (Vdss): 600V
• Continuous Drain Current (Id): 10A @ 25°C
• Maximum On-Resistance (Rds On): 750mOhm @ 5A and 10V
• Gate Charge (Qg): 30nC @ a gate-source voltage (Vgs) of 10V
• Input Capacitance (Ciss): 1130pF @ a drain-source voltage (Vds) of 300V
• Maximum Allowed Gate-Source Voltage (Vgs): ±30V
• Operating at a temperature range of: -55°C to 150°C
• Suitable for applications such as: power supplies, motor control, and inverters
• Standard Package: 50 pcs in a tube for convenient handling and storage
