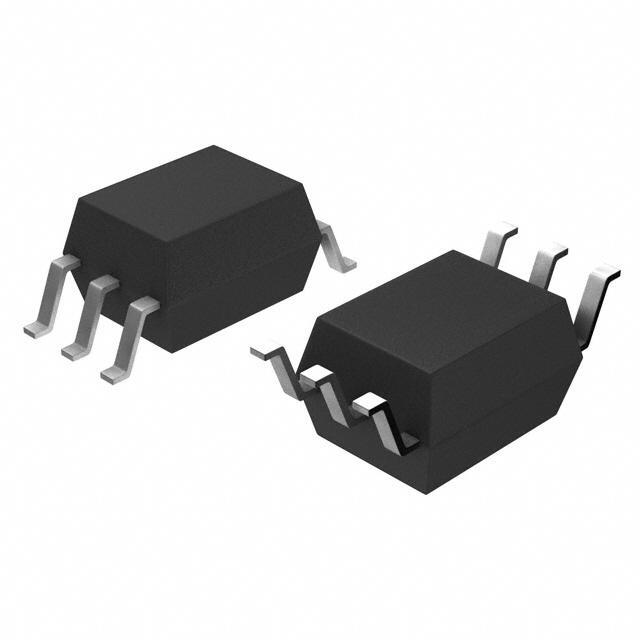

TLP199D(F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP199D(F)

Part No TLP199D(F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description PHOTORELAY MOSFET 50MA 6-SOP / Solid State Relay 50mA 1.3V DC-IN 0.05A 200V AC/DC-OUT 6-Pin SOP T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Toshiba Semiconductor and Storage
Series TLP199D
Packaging Bulk
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 50 Ohm
Load Current 50mA
Voltage - Input 1.15VDC
Voltage - Load 0 ~ 200 V
Mounting SMD
Termination Style Gull Wing
Package 6-SOP (0.173", 4.40mm)
Manufacturer Package 6-SOP (2.54mm)
Relay Type Relay
Win Source Part Number 797035-TLP199D(F)
Popularity Medium
Supply and Demand Status Limited
Family Name TLP199D
Introduction Date July 22, 2004
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian TLP199D(F) CAD Model

Description

The TLP199D is a SPST-NO (1 Form A) relay from Toshiba Semiconductor and Storage.

  • Load Current: 50mA
  • Voltage Range: 0 ~ 200 V
  • Termination Style: Gull-wing
  • Package: 6-SOP
  • Mounting Style: SMD
  • Output Type: AC, DC
  • On-State Resistance: 50 Ohm
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2025
  • Applications: Relays
