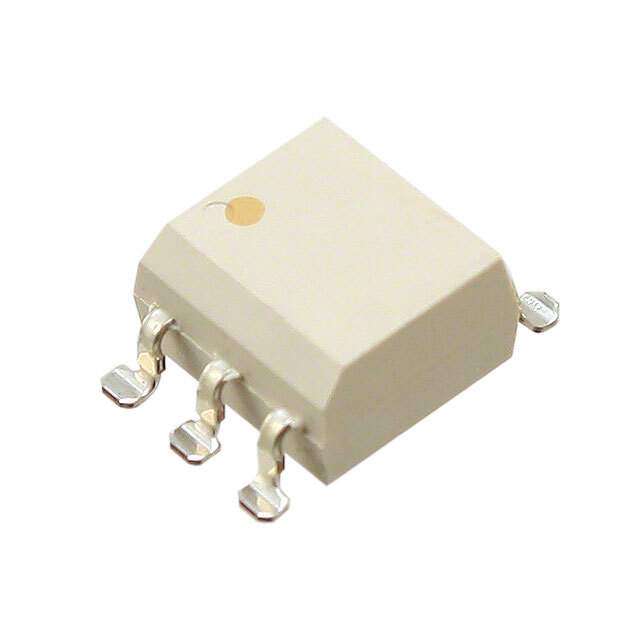

The TLP3032 is a Phototriac Coupler from Toshiba Semiconductor and Storage. Similar to the TLP3031, it integrates an infrared LED and a photo-triac to provide electrical isolation for AC load control applications.

Applications:

• Solid State Relays (SSRs)
• Industrial Automation Equipment
• Temperature Controllers
• Solenoid and Valve Control
• Lighting Systems

Features:

• High Isolation Voltage: Provides robust protection against high-voltage transients.
• Zero Crossing Function: Minimizes switching noise and extends the lifespan of connected loads.
• Low Input Trigger Current: Operates efficiently with minimal control signal power.
• DIP Package: Standard through-hole package for easy integration.
• Safety Standards Compliance: Meets industry safety requirements for isolation.

Benefits:

• Enhanced Safety: Prevents electrical hazards by isolating control signals from AC power.
• Reduced Noise: Zero crossing circuitry lowers electromagnetic interference.
• Energy Efficient: Low trigger current reduces power consumption.
• Simple Implementation: Easy to incorporate into existing circuits with standard package.
• Increased Reliability: Solid-state design offers a long and trouble-free operating life.

Additional Details:

The TLP3032 has a peak off-state voltage of 400V. Its isolation voltage is rated at 5000Vrms. It is typically activated with an LED trigger current of 3mA. It also comes in a through-hole DIP package. This phototriac is designed to switch AC loads with low EMI due to the zero-crossing detection. The typical operating temperature range is -30°C to 100°C.
