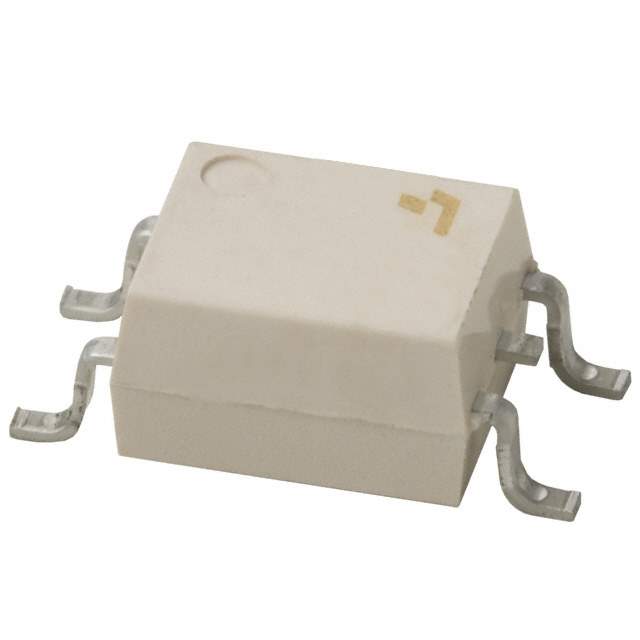

The TLP3130 is a solid-state relay (SSR) manufactured by Toshiba Semiconductor and Storage. It is designed for switching AC or DC loads, providing electrical isolation between the control circuit and the load circuit. The TLP3130 uses an infrared LED as the input and a phototriac or MOSFET as the output, offering reliable and fast switching performance.

Applications:

• Industrial control systems
• Security systems
• Office automation equipment
• Home appliances
• Medical equipment

Features:

• Solid-state switching
• High isolation voltage
• Low on-resistance
• Fast switching speed
• Compact package
• RoHS Compliant

Benefits:

• Increased reliability and lifespan compared to mechanical relays due to the absence of moving parts.
• Enhanced safety with high isolation voltage between control and load circuits.
• Reduced power consumption and heat generation due to low on-resistance.
• Improved system performance with fast switching speeds.
• Easy integration into various applications due to its compact size.
• Environmentally friendly due to RoHS compliance.

Additional Details:

The TLP3130 SSR provides a reliable and efficient solution for switching various types of loads. Its solid-state design eliminates the wear and tear associated with mechanical relays, resulting in a longer lifespan and reduced maintenance requirements. The high isolation voltage ensures safe operation by preventing electrical noise and interference between the control and load circuits. The low on-resistance minimizes power dissipation, contributing to energy efficiency. The fast switching speed allows for precise control and responsiveness in demanding applications. The TLP3130 is commonly used in applications where reliable and isolated switching is required. Different versions may use a Photo Triac or MOSFET output stage, depending on the specific load requirements (AC or DC).
