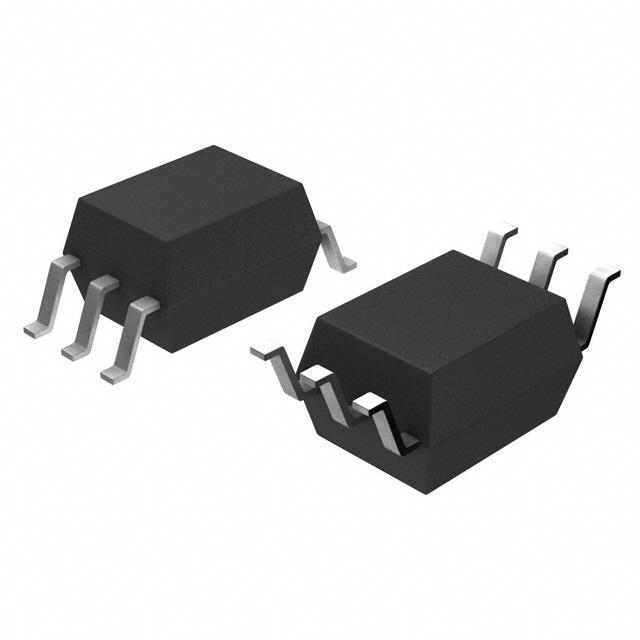

Same model may have multiple batches, images only for reference.
TLP4197G(TP,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP4197G(TP,F)

Part No TLP4197G(TP,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description PHOTORELAY MOSFET OUT 3MA 6-SOP / Solid State Relay 50mA 1.3V DC-IN 0.12A 350V AC/DC-OUT 6-Pin SOP T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Toshiba Semiconductor and Storage
Series TLP4197G
Packaging Reel package
Circuit SPST-NC (1 Form B)
Output Type AC, DC
On-State Resistance (Maximum) 25 Ohm
Load Current 120mA
Voltage - Input 1.15VDC
Voltage - Load 0 ~ 350 V
Mounting SMD
Termination Style Gull Wing
Package 6-SOP (0.173", 4.40mm)
Manufacturer Package 6-SOP (2.54mm)
Relay Type Relay
Win Source Part Number 797065-TLP4197G(TP,F)
Popularity Medium
Supply and Demand Status Limited
Family Name TLP4197G
Introduction Date January 04, 2002
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian TLP4197G(TP,F) CAD Model

Description

The Toshiba Semiconductor and Storage TLP4197G(TP,F) is a relay manufactured by Toshiba Semiconductor and Storage.

  • Series: TLP4197G
  • Package: 6-SOP
  • Termination Style: Gull wing
  • Mounting: Surface Mount Technology
  • Input Voltage: 1.15VDC
  • Output Type: AC/DC
  • Circuit: SPST-NC (1 Form B)
  • Relay Type: Relay
  • Load Current: 120mA
  • Voltage Load: 0-350V
  • On-State Resistance: 25 Ohm
  • Supply and Demand Status: Limited
