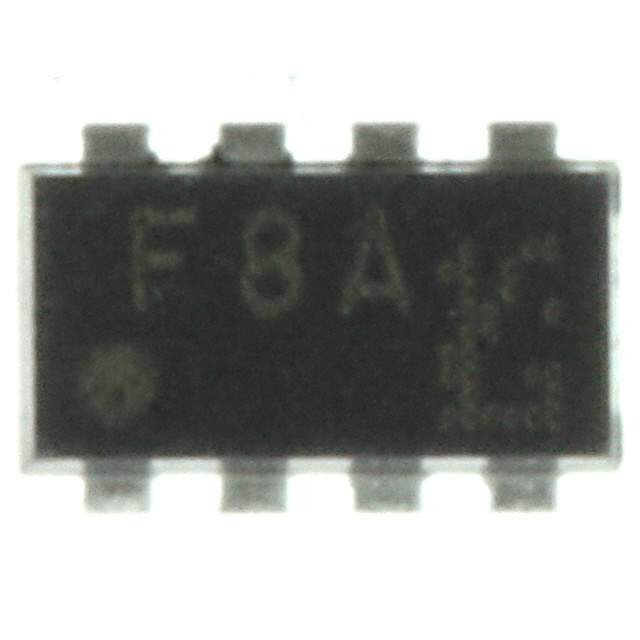

TPCF8B01 Real Image
Same model may have multiple batches, images only for reference.

TPCF8B01

Part No TPCF8B01
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 2.7A VS-8
Datasheet
TPCF8B01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Obsolete(EOL)
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 1.2V @ 200μA
Max Gate Charge 6nC @ 5V
Max Input Capacitance 470pF @ 10V
Maximum Gate-Source Voltage ±8V
FET Feature Schottky Diode (Isolated)
Power Dissipation (Max) 330mW (Ta)
Maximum Rds On at Id,Vgs 110 mOhm @ 1.4A, 4.5V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package VS-8 (2.9x1.5)
Dimension 8-SMD, Flat Lead
Win Source Part Number 097651-TPCF8B01
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TPCF8B01 CAD Model

Description

The Toshiba Semiconductor and Storage 097651-TPCF8B01 is a P-Channel MOSFET with a Schottky Diode (Isolated) FET feature.

  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 2.7A @ 25°C
  • Mounting: SMD (SMT)
  • Maximum Rds On: 110 mOhm @ 1.4A, 4.5V
  • Status: Obsolete (EOL)
  • Operating Temperature: 150°C (TJ)
