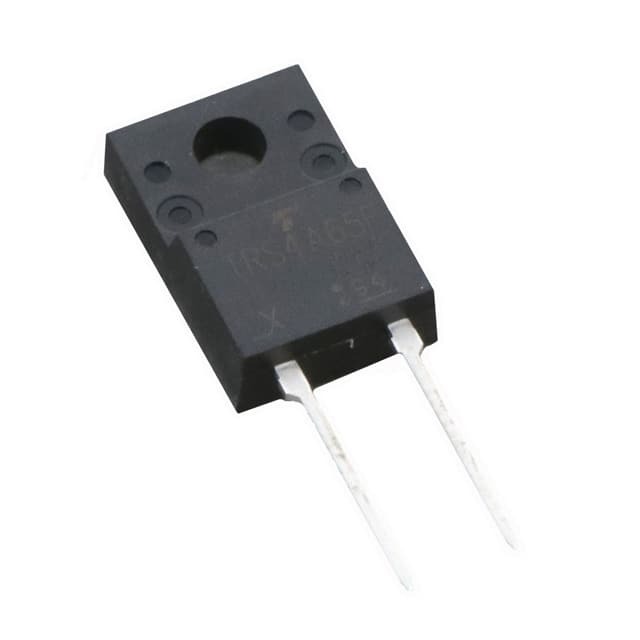

Same model may have multiple batches, images only for reference.

TRS8A65F,S1Q

Name: TRS8A65F,S1Q
Brand: Toshiba Semiconductor and Storage
SKU: 1014432
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TRS8A65F,S1Q
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Diodes, Rectifiers - Single
Description	PB-F DIODE TO-220-2L V=650 IF=8A / Diode Silicon Carbide Schottky 650 V 8A (DC) Through Hole TO-220F-2L
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Toshiba Semiconductor and Storage
Package	Tube
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	650 V
Current - Average Rectified (Io)	8A (DC)
Voltage - Forward (Vf) (Max) @ If	1.6 V @ 8 A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0 ns
Current - Reverse Leakage @ Vr	40 µA @ 650 V
Capacitance @ Vr, F	28pF @ 650V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-220-2 Full Pack
Supplier Device Package	TO-220F-2L
Operating Temperature - Junction	175°C (Max)
Base Product Number	TRS8A65
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	264-TRS8A65FS1Q,TRS8A65F,S1Q(S2
Standard Package	50
Win Source Part Number	1014432-TRS8A65F,S1Q
Ultra Librarian 3D Model	Ultra Librarian TRS8A65F,S1Q CAD Model

Alternative Products

Description

This electronic component is a Silicon Carbide Schottky diode manufactured by Toshiba Semiconductor and Storage.

Package: TO-220-2 Full Pack
Voltage - DC Reverse (Vr) (Max): 650 V
Current - Average Rectified (Io): 8A (DC)
Voltage - Forward (Vf) (Max) @ If: 1.6 V @ 8 A
Reverse Recovery Time (trr): 0 ns
Current - Reverse Leakage @ Vr: 40 µA @ 650 V
Capacitance @ Vr, F: 28pF @ 650V, 1MHz
Operating Temperature - Junction: 175°C (Max)
Category: Discrete Semiconductor Products>Diodes - Rectifiers - Single
