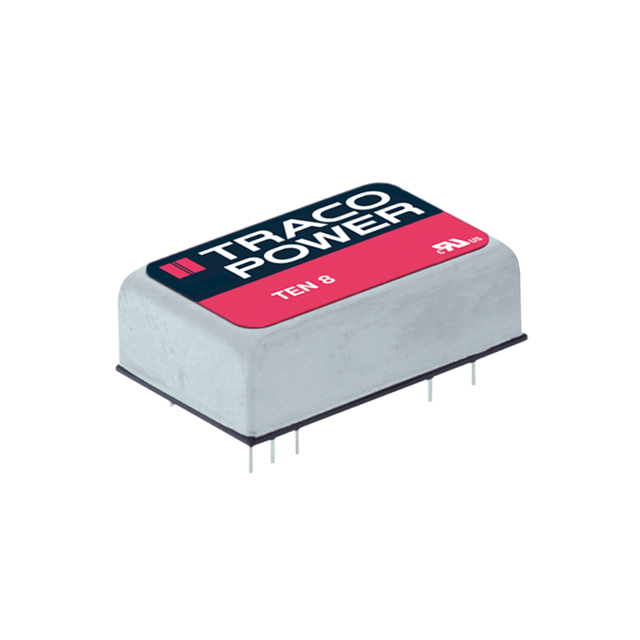

The TRACO Electronic AG TEN8-1222 is an 8-Watt isolated DC/DC converter module designed to provide regulated dual output voltages from a DC input voltage. It is well-suited for applications requiring isolated power and dual rail voltages, such as those found in industrial control systems, instrumentation, and data acquisition equipment. The module is characterized by its compact size, high efficiency, and reliable performance.

Applications

• Industrial control systems
• Instrumentation
• Data acquisition
• Medical equipment
• Isolated power supplies

Features

• 8 Watt isolated DC/DC converter
• Input voltage range: 9-18 VDC
• Output voltage: ±12 VDC
• Output current: ±333 mA
• Isolation voltage: 1500 VDC
• Operating temperature range: -40°C to +85°C
• Continuous short circuit protection
• Industry standard pinout
• High efficiency

Benefits

• Dual Isolated Outputs: Provides stable and isolated positive and negative output voltages for powering analog and mixed-signal circuits.
• High Isolation Voltage: Offers 1500 VDC isolation, protecting sensitive circuits from high voltage transients and ground loops.
• Continuous Short Circuit Protection: Prevents damage to the converter and connected devices in the event of a short circuit.
• Wide Operating Temperature Range: Operates reliably in a wide range of environmental conditions.
• Industry Standard Pinout: Simplifies integration into existing designs.
• High Efficiency: Minimizes power dissipation and heat generation.

The TEN8-1222 is designed with high-quality components and utilizes advanced circuit topology to achieve efficient and stable power conversion. The continuous short-circuit protection ensures that the converter can withstand prolonged short-circuit conditions without damage. The 1500 VDC isolation voltage ensures safe operation in applications requiring high levels of electrical isolation. Its compact size and industry-standard pinout facilitate easy integration into a variety of electronic systems. The wide operating temperature range makes it suitable for use in demanding industrial environments. This DC/DC converter provides a reliable and efficient solution for generating isolated dual rail voltages.
