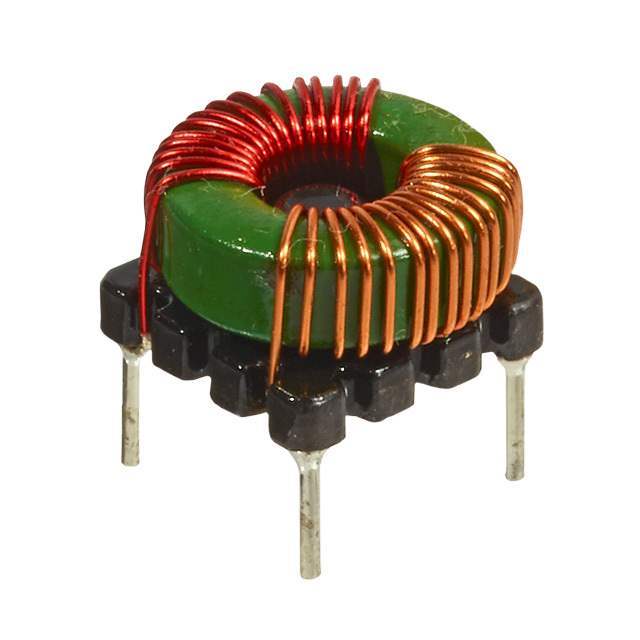

TCK-051

Part No TCK-051
Manufacturer Traco Power
Catalog Common Mode Chokes
Description CMC 145UH 5.2A 2LN TH
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204279-TCK-051
Manufacturer Traco Power
Category Filters- Common Mode Chokes
Package Bag
Product Status Active
Number of Lines 2
Inductance @ Frequency 145 µH @ 100 kHz
Current Rating (Max) 5.2A
DC Resistance (DCR) (Max) 20mOhm
Voltage Rating - DC 500V
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian TCK-051 CAD Model

Description

145 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 5.2A DCR 20mOhm
