Same model may have multiple batches, images only for reference.

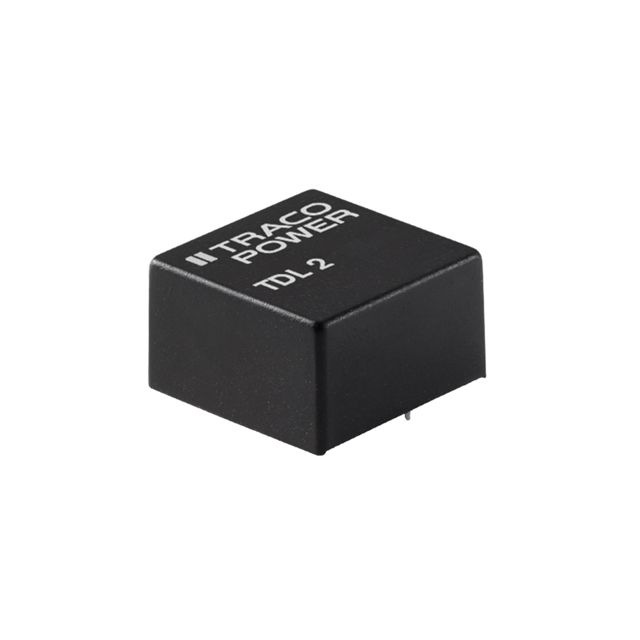

TDL 2-4823 Real Image
Same model may have multiple batches, images only for reference.

TDL 2-4823

Part No TDL 2-4823
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 36V - 75V Input
Datasheet
TDL 2-4823 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 67mA, 67mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 84%
Mounting Through Hole
Case / Package 7-DIP Module, 5 Leads
Size / Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDL 2-4823-ND,TDL2-4823
Standard Package 10
Win Source Part Number 1335367-TDL 2-4823
Ultra Librarian 3D Model Ultra Librarian TDL 2-4823 CAD Model

Description

The Traco Power electronic component is a 2W isolated module DC DC converter that is designed for use in ITE (Commercial) applications.

  • Features: SCP
  • Voltage Isolation: 1.5 kV
  • Size: 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
  • Mounting: Through a hole
  • Outputs: Two
  • Voltage Output 1: 15V
  • Voltage Output 2: -15V
