Same model may have multiple batches, images only for reference.

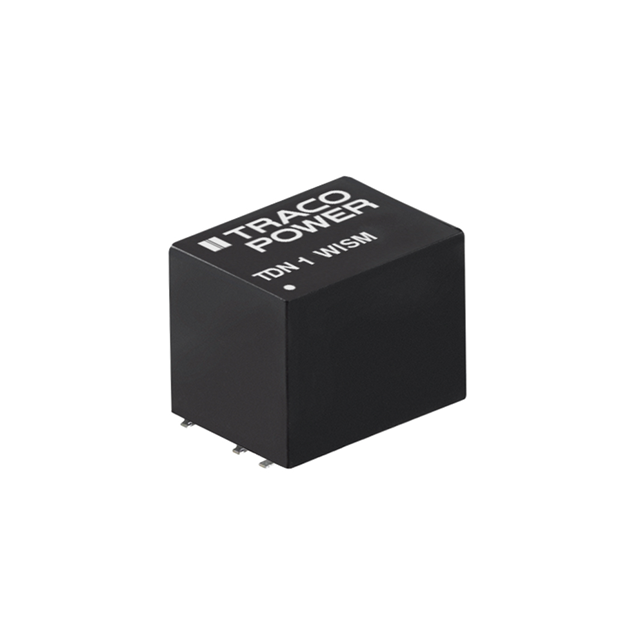

TDN 1-4821WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 1-4821WISM

Part No TDN 1-4821WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 18V - 75V Input
Datasheet
TDN 1-4821WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 77%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 1
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN1-4821WISM,TDN 1-4821WISM-ND
Standard Package 10
Win Source Part Number 1335458-TDN 1-4821WISM
Ultra Librarian 3D Model Ultra Librarian TDN 1-4821WISM CAD Model

Description

Traco Power TDN 1-4821WISM is an isolated module that comes in a tube package.

  • Standard Package: 10
  • Applications: Power supplies-board mount
  • Power: 1 W
  • Voltage-Isolation: 1.6 kV
  • Outputs: Two
  • Current Output: 100mA, 100mA
  • Voltage Output: 5V, -5V
  • Efficiency: 77%
  • HTSUS Code: 8504.40.9580
  • ROHS3 Compliant: Yes
