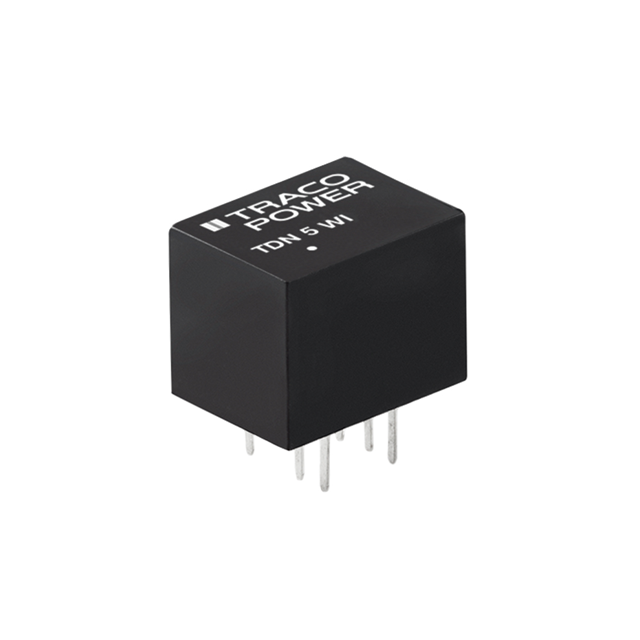

Same model may have multiple batches, images only for reference.

TDN 5-0922WI

Name: TDN 5-0922WI
Brand: Traco Power
SKU: 1335485
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TDN 5-0922WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 5W / Isolated Module DC DC Converter 2 Output 12V -12V 210mA, 210mA 4.5V - 13.2V Input
Datasheet	TDN 5-0922WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	210mA, 210mA
Power (Watts)	5 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 75°C (With Derating)
Efficiency	83%
Mounting	Through Hole
Case / Package	7-DIP Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number	TDN 5
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDN5-0922WI,TDN 5-0922WI-ND,2266-TDN 5-0922WI
Standard Package	10
Win Source Part Number	1335485-TDN 5-0922WI
Ultra Librarian 3D Model	Ultra Librarian TDN 5-0922WI CAD Model

Alternative Products

Description

The Traco Power TDN 5-0922WI is a DC-DC converter module manufactured by Traco Power with an output power of 5W.

Type: Isolated Module
Features: Remote On/Off and SCP
Maximum Output Current: 210mA each
Input Voltage: ranges from 4.5V to 13.2V
Output Voltage: 12V and -12V
Application: ITE (Commercial)
Standard Package: 10
Mounting Type: through hole
Size: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Voltage Isolation: 1.6 kV
Efficiency: 83%
Operating Temperature: -40°C to 75°C (With Derating)
Case / Package: 7-DIP Module, 6 Leads
Compliance: ROHS3 Compliant
ECCN: EAR99
