Same model may have multiple batches, images only for reference.

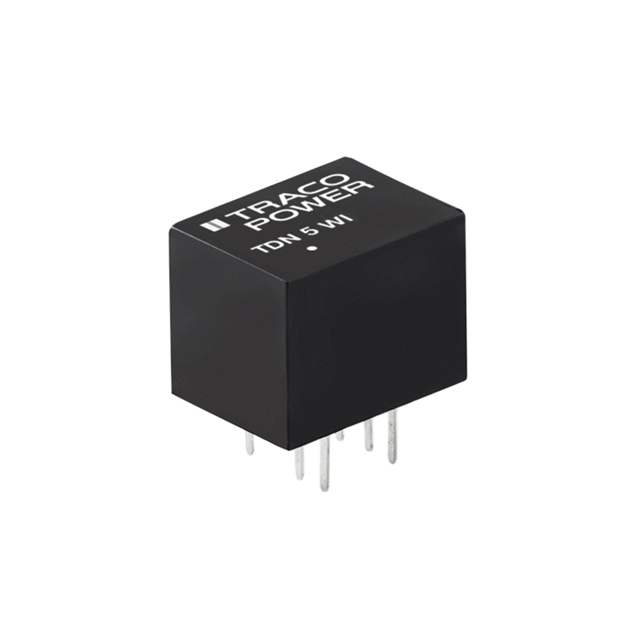

TDN 5-2423WI Real Image
Same model may have multiple batches, images only for reference.

TDN 5-2423WI

Part No TDN 5-2423WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 5W / Isolated Module DC DC Converter 2 Output 15V -15V 168mA, 168mA 9V - 36V Input
Datasheet
TDN 5-2423WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 168mA, 168mA
Power (Watts) 5 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 84%
Mounting Through Hole
Case / Package 7-DIP Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 5
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN5-2423WI-ND,TDN 5-2423WI-ND,1951-2911,2266-TDN 5-2423WI,TDN5-2423WI
Standard Package 10
Win Source Part Number 1335554-TDN 5-2423WI
Ultra Librarian 3D Model Ultra Librarian TDN 5-2423WI CAD Model

Description

The Traco Power TDN 5-2423WI is an isolated module DC-DC converter with a remote on/off feature and short circuit protection.

  • Size: 0.52" L x 0.36" W x 0.40" H
  • Applications: ITE (Commercial)
  • Power: 5W
  • Efficiency: 84%
  • Input Voltage Range: 9V to 36V
  • Output Voltage: 15V and -15V
  • Outputs: Two outputs
  • Voltage Isolation: 1.6 kV
  • Operating Temperature: -40°C to 75°C (With Derating)
  • Package: 7-DIP Module, 6 Leads
  • Compliance: ROHS3 compliant and REACH unaffected
