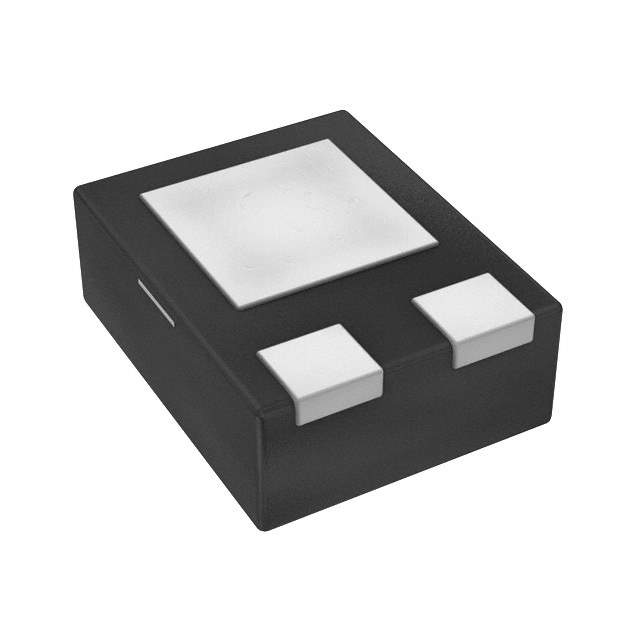

The SBRT2U15LP-7 from Diodes Incorporated is a state-of-the-art Schottky barrier rectifier designed for high-efficiency power conversion applications. This device is packaged in a low-profile PowerDI™ 123 package, which is ideal for space-constrained applications while providing excellent thermal performance.

Key Features

• Low Forward Voltage: The SBRT2U15LP-7 boasts a low forward voltage drop, which significantly reduces power losses and improves efficiency, making it ideal for high-frequency inverters, DC-DC converters, and freewheeling diodes in power supplies and other power-switching applications.
• High Surge Current Capability: This device is capable of withstanding high surge currents, thereby offering robust performance during transient conditions.
• Low Profile Package: The PowerDI™ 123 package is designed to be ultra-slim, allowing for high-density PCB layouts and making it suitable for portable and compact electronic assemblies.
• RoHS Compliant: In line with modern environmental standards, the SBRT2U15LP-7 is RoHS compliant, ensuring that it is free from hazardous substances.

Applications

The SBRT2U15LP-7 is versatile and can be used in a variety of applications. Its low power loss and high efficiency are particularly beneficial in:

• LED Lighting
• Power Management Systems
• Automotive Applications
• Telecommunication Equipment
• Portable Electronic Devices
• Adapters and Battery Chargers

Technical Specifications

The SBRT2U15LP-7 operates with a maximum average rectified current of 2A and a peak repetitive reverse voltage of 15V. Its forward voltage drop is typically 0.40V at 1A, which contributes to its high efficiency. The operating junction temperature range is from -55°C to +150°C, making it reliable across various environmental conditions.

Conclusion

The SBRT2U15LP-7 from Diodes Incorporated is an excellent choice for designers looking for a high-performance Schottky barrier rectifier that combines low power loss, high surge capability, and a compact footprint. Its compliance with RoHS standards also ensures that it meets global environmental regulations, making it a responsible choice for modern electronic designs.
