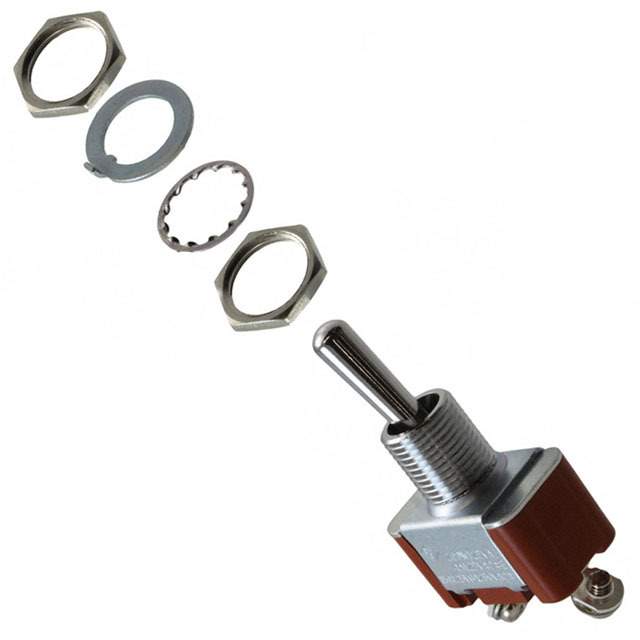

S301T Real Image
Same model may have multiple batches, images only for reference.

S301T

Part No S301T
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPST 15A 125V / Toggle Switch SPST Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr NKK Switches
Series S300
Package Bulk
Mounting Type Panel Mount
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 15A (AC), 20A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Temperature Range - Operating -10°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number S301
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 360-1223-ND,360-1897,360-1223,360-1223INACTIVE,S301T-RO,Q8973820
Standard Package 1
Win Source Part Number 1090013-S301T
Ultra Librarian 3D Model Ultra Librarian S301T CAD Model

Description

The 1090013-S301T toggle switch from NKK Switches has a screw terminal termination style.

  • Operating Temperature Range: -10°C to 70°C
  • Circuit: SPST
  • Switch Function: On-Off
  • Mounting Type: Panel mount
  • Package: Bulk
  • REACH: Unaffected
