Same model may have multiple batches, images only for reference.

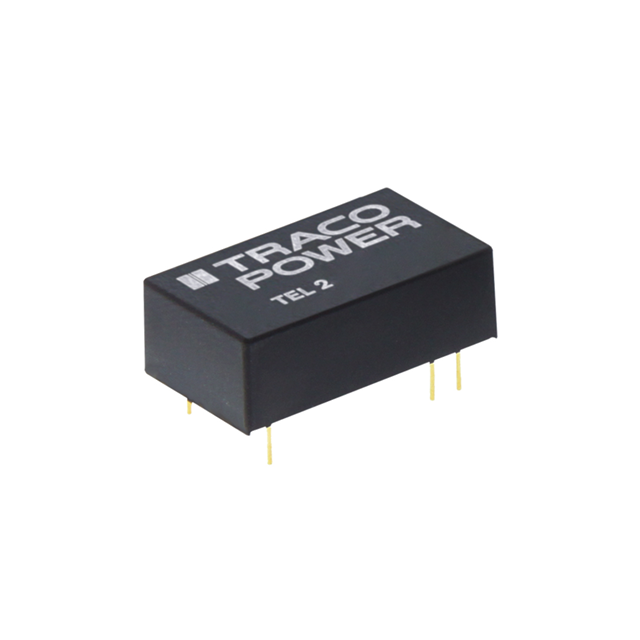

TEL 2-2422 Real Image
Same model may have multiple batches, images only for reference.

TEL 2-2422

Part No TEL 2-2422
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 85mA, 85mA 18V - 36V Input
Datasheet
TEL 2-2422 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 85mA, 85mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 75°C
Efficiency 78%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
Base Product Number TEL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2103
Standard Package 10
Win Source Part Number 1335583-TEL 2-2422
Ultra Librarian 3D Model Ultra Librarian TEL 2-2422 CAD Model

Description

The Traco Power 1335583-TEL 2-2422 is a DC DC converter that comes in an isolated module type.

  • Features: SCP
  • Power: 2W
  • Voltage Isolation: 1.5kV
  • Outputs: 2 outputs
  • Maximum Output Current: 85mA each
  • Input Voltage Range: From 18V to 36V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 78%
  • Operating Temperature: -40°C to 75°C
  • Package: 16-DIP module, 6 leads
  • Standard Package: 10
  • Status: Not for new designs
  • Compliance: ROHS3 compliant
